| Place of Origin: | Shandong, China |
| Brand Name: | Classic |

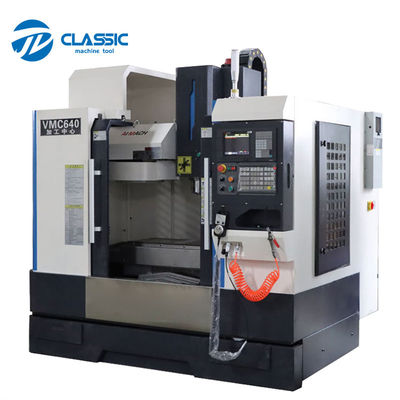

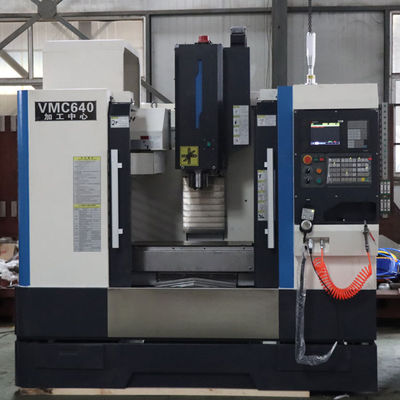

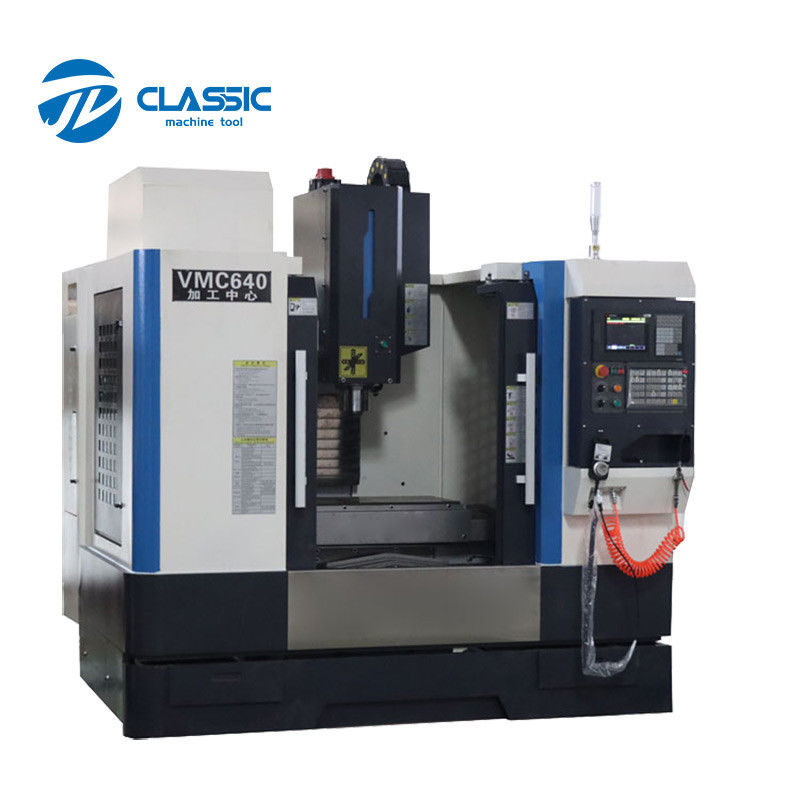

| Model Number: | vmc640 |
| Price: | $12,000.00/Sets 1-4 Sets |
|---|---|
| Packaging Details: | The machine will be packed by the playwood case<br>Factory direct commercial CNC milling machine VMC640 CNC machining center |
| Supply Ability: | 50 Set/Sets per Month |
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 60 - 8000 |
|---|---|---|---|
| Number Of Axes: | 4 | No. Of Spindles: | Single |
| Machining Capacity: | Light Duty | Spindle Taper: | BT30/BT40 |
| Table Travel (X) (mm): | 600 Mm | Table Travel (Y) (mm): | 400 Mm |
| Table Travel (Z) (mm): | 500 Mm | Positioning Accuracy (mm): | 0.01 |
| Repeatability (X/Y/Z) (mm): | 0.005 | Condition: | New |
| Table Travel (mm): | 800*320 | Year: | 2021 |
| Voltage: | 380V | Dimension(L*W*H): | 1900*1800*2100 |
| CNC Control System: | KND | Key Selling Points: | Competitive Price |
| Weight (KG): | 2500 | Spindle Motor Power(kW): | 5.5 |
| Warranty: | 2 Year | Max. Table Load(kg): | 300 Kg |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Bearing | CNC Or Not: | CNC |
| T Slot Qty-width*distance: | 3-14x110 | Spindle Speed: | 60-8000 R P M |
| Spindle Nose To Table Surface: | 125-520mm | Spindle Center To Column Surface: | 360 |
| Main Motor Power: | 3.7kw (servo) | Machine Type: | Cnc Vertical Milling Machine |
| Application: | Metal Machining | Color: | Custom-made |
| Product Name: | Vertical Machininig Center | Port: | Qingdao Or Shanghai Port |
|
specifications
|
unit
|
VMC640
|
|
Table size
|
mm
|
800x320
|
|
X axis travel
|
mm
|
600
|
|
Y axis travel
|
mm
|
300
|
|
Z axis travel
|
mm
|
400
|
|
Distance between spindle
center and column surface |
mm
|
469
|
|
Distance between spindle nose
and table surface |
mm
|
100-600
|
|
T slot
|
|
3-18*125
|
|
Spindle taper
|
mm
|
BT40
|
|
Max. spindle speed
|
r/min
|
8000(10000 optional)
|
|
Main motor power
|
kw
|
5.5
|
|
X/Y/Z axis servo motor torque
|
N.M
|
10/10/15
|
|
X/Y/Z motor connection
|
|
direct
|
|
X/Y/Z guide rail form
|
|
3 axis linear guide rail
|
|
Max.table load
|
kg
|
450
|
|

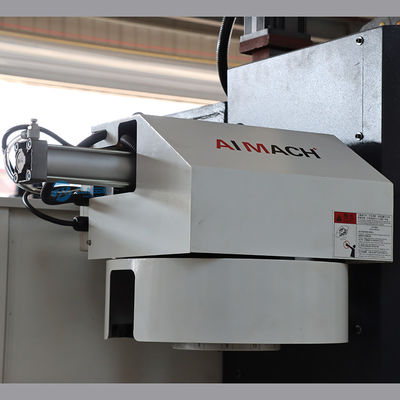

Automatic tools changer
|
|
16 Armless type(optional:24 arm type)
|
|
Max.tool weight
|
kg
|
7
|
|
Max. tool length
|
mm
|
250/350
|
|
Max. tool diameter
|
mm
|
100(Adjacent)/150(Apart)
|
|
X/Y/Z axis rapid traverse
|
M/min
|
24(optional :48)
|
|
Cutting feed speed
|
M/min
|
10
|
|
Position accuracy
|
mm
|
±0.005
|
|
Repeat positioning accuracy
|
mm
|
±0.003
|
|
Machine dimension
|
mm
|
1710*2100*2250
|
|
Machine weight
|
kg
|
3000
|
