| Place of Origin: | Shandong, China |
| Brand Name: | Classic |
| Price: | $69,998.00/Sets 1-2 Sets |
|---|---|

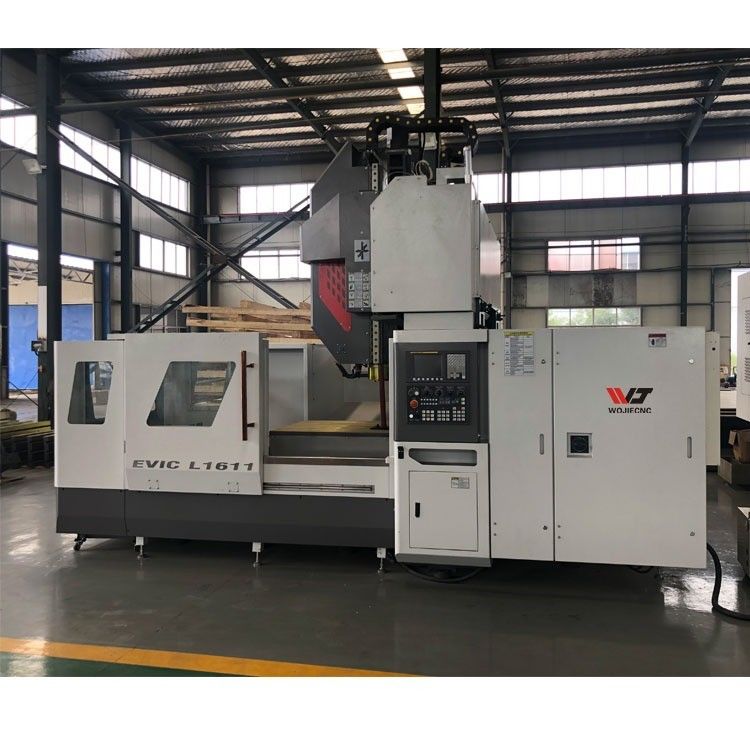

| Packaging Details: | The machine will be packed by the plywood case<br>Siemens control cnc gantry machine center GMC1611 4 axis cnc machining center for sale |
| Supply Ability: | 100 Set/Sets per Year |
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 1 | Type: | VERTICAL |
| Dimension(L*W*H): | 4500x3000x3600mm | Weight (T): | 13 T |
| Table Size (mm): | 1800*800 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 1600 Mm |
| Table Travel (Y) (mm): | 1100 Mm | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | 0.005 | Repeatability (X/Y/Z) (mm): | 0.004 |
| Range Of Spindle Speed(r.p.m): | 60 - 8000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 2500 Kg | Feed Speed(mm/min): | 10 - 1000 Mm/min |
| Rapid Feed Speed(m/min): | 12/12/12 | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 16, 10, 20, 12, 24, 32, 40 | Key Selling Points: | Automatic |
| Warranty: | 2 Years | Voltage: | 220V/380V/480V |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Motor | Machine Type: | CNC Vertical Machining Center |
| Product Name: | 3-axis Vertical Cnc Machining Center | Application: | General Machinery Processing |
| Product Type: | Machining Center Cnc Mill Machine | Controlling Mode: | Fanuc Mitsubishi Siemens Gsk System |
| Name: | CNC Metal Processing Machine | Processing: | Metal Cutting Cnc Milling Machine |
| Precision: | High Precision Machining Center | Function: | Machining Metal |
| Keywords: | Vmc Machine Center | Port: | Qingdao Or Shanghai Port |
|
Specifications
|
Units
|
GMC1611
|
|
Table size
|
mm
|
1800x800
|
|
X axis travel
|
mm
|
1600
|
|
Y axis travel
|
mm
|
1100
|
|
Z axis travel
|
mm
|
600
|
|
Max. worktable load
|
kg
|
2500
|
|
T slot(number-width-pitch)
|
|
5-18x140
|
|
Max. spindle speed
|
rpm
|
8000
|
|
Spindle taper
|
mm
|
BT40 (Optional:BT50 )
|
|
Main motor power
|
kw
|
15/18.5
|
|
X/Y/Z rapid traverse speed
|
m/min
|
12/12/12
|
|
Cutting feed speed
|
mm/min
|
1-10000
|
|
Guide rail type
|
|
Linear rail
|
|
Distance from spindle axis to column surface
|
mm
|
406.5
|
|
Distance between spindle nose and worktable surface
|
mm
|
140-740
|
|
Positioning accuracy
|
mm
|
±0.005
|
|
Repeat positioning accuracy
|
mm
|
±0.004
|
|
Tool magazine
|
|
Arm 24
|
|
Max. tool diameter
|
mm
|
φ78 (Adjacent)/ φ120(Apart)
Optional: φ112 (Adjacent)/ φ200(Apart) |
|
Max.tool weight
|
kg
|
8 (Optional: 18)
|
|
Machine weight
|
kg
|
16000
|
|
Overall dimension
|
mm
|
4500x3000x3600
|
|
Serial number
|
Name
|
Specifications or markings
|
Quantity
|
|
1
|
Spring chuck handle
|
MAS BT40-ER32-100L
|
1
|
|
2
|
Spring chuck
|
|
1
|
|
3
|
Rivet
|
P40T-1-MAS403
|
1
|
|
4
|
Hook wrench
|
|
1
|
|
5
|
Allen wrenches
|
|
1
|
|
6
|
Adjustable horn and bolts
|
|
4
|
|
Serial number
|
Name
|
model
|
Origin
|
Quantity
|
|
1
|
Spindle unit
|
BT40
|
Taiwan posn
|
1
|
|
2
|
Pressed cylinder
|
|
Taiwan Haocheng
|
1
|
|
3
|
ATC
|
16
|
Taiwan okada
|
1
|
|
4
|
X Ball Screws
|
|
Taiwan Hiwin
|
1
|
|
5
|
y Ball Screws
|
|
Taiwan Hiwin
|
1
|
|
6
|
Z Ball Screws
|
|
Taiwan Hiwin
|
1
|
|
7
|
Screw bearings
|
|
china
|
3
|
|
8
|
guide
|
X, Y,Z all is ball line
|
Taiwan Hiwin
|
3
|
|
9
|
control system
|
|
Knd/gsk
|
1
|
|
10
|
Three axes Motor and drive
|
|
MAXSINE
|
1
|
|
11
|
Cooling the pump
|
PMY-25-5
|
china
|
1
|
|
12
|
Lubrication system
|
Single wire damping
|
Taiwan Hurun
|
1
|
|
13
|
Pneumatic system
|
|
Taiwan Airtac
|
1
|
