CNC TCK50A Slant Bed CNC Lathe Machine Horizontal

Name: CNC TCK50A Slant Bed CNC Lathe Machine Horizontal
Brand: Classic
SKU: TCK50A
Price: 17 USD
Availability: InStock
Rating: 4.5 (173 reviews)

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Classic
Model Number:	TCK50A

Payment & Shipping Terms:

Price:	$17,000.00/Sets 1-2 Sets
Packaging Details:	The machine will be packed by the plywood case<br>Slant bed lathe machine CNC TCK50A lathe Machine and CNC lathe machine
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Horizontal
Year:	2022	Max. Length Of Workpiece (mm):	350/500
Structure:	Slant Bed Lathe	Max. Spindle Speed (r.p.m):	3000 R.p.m
Machining Capacity:	Medium Duty	Max. Weight Of Workpiece(kg):	800
Spindle Bore(mm):	66	Width Of Bed (mm):	400 Mm
Spindle Motor Power(kW):	7.5/11	No. Of Spindles:	Single
Max. Turned Length (mm):	350500	Number Of Axes:	2
Travel (X Axis)(mm):	240 Mm	Travel (Z Axis)(mm):	540 Mm
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.003
Dimension(LWH):	260018502000mm	Voltage:	380V
CNC Control System:	GSK	Toolpost Brand:	Hongda
Tool Post Stations:	6, 4	Weight (KG):	3000
Warranty:	2 Years	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other
Key Selling Points:	Automatic	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Marketing Type:	New Product 2022	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	2 Years
Core Components:	Bearing	CNC Or Not:	CNC
Product Type:	Slant Bed Turning Center	Name:	High Precision CNC Lathe Machine
Product Name:	CNC Lathe Mechine	Automatic Grade:	Automatic CNC Turning Machine
Model:	TCK50A CNC Lathes	Application:	Industrial Equipment
Control System:	GSK SIEMENS FANUC KND GUNT	Chuck:	3 Jaw Chuck
Product Keywords:	Cnc Milling Machine 3 Axis	Port:	Qingdao Or Shanghai Port

Product Application

This machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface can satisfy the ferrous and non-ferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace, military industry and other industries to high efficiency, large quantity and high precision of parts processing Machining precision can reach level 7.

SPECIFICATIONS	Units	TCK36A	TCK46A	TCK50A
Swing over bed	mm	360	460	560
Swing over cross slide	mm	170	170	260
Distance between centers	mm	300	350	350/500
Spindle bore	mm	48	56	66
Bar capacity	mm	40	45	55
Spindle speed steps	-	Stepless	Stepless	Stepless
Spindle nose type	-	A2-5	A2-5	A2-6
Spindle speed	rpm	4000	3500	3000
Turret/tool post	-	63-8T/12T	80-8T/12T	100-8T/12T
X axis travel	mm	310	240	240
Z axis travel	mm	350	400	400/450
X axis motor torque	N.m	6	7.5	7.5/10
Z axis motor torque	N.m	6	7.5	7.5/10
Main spindle motor	kw	3.7	5.5	7.5/11
Hydraulic tailstock quill dia.	mm	65	70	70
Hydraulic tailstock quill taper	-	MT4	MT5	MT5
Hydraulic tailstock travel	mm	220	200	200/450
Hydraulic tailstock quill traverse	mm	50	80	80
Guide rail type	-	Slant bed linear rail	Slant bed linear rail	Slant bed linear rail
Machine weight	kg	2100	2600	2800/3000
Overall dimension	mm	210014501700	2500x1700x1890	2500x1700x1890

Standard Accessories: Optional Accessories:

1,Taiwan higher accuracy linear guide ways 1. NC System: KND1000Ti, Fanuc Oi Mate-T
2,Taiwan ball screw 2. Main Motor: Servo 11/15 KW
3,Hydraulic magazine 3. Turret: 8 station electric turre
4,Taiwan hydraulic chuck 4. Chuck: 8″Non-through hole hydraulic chuck
5,Hydraulic tailstock 5. 8″Non-through hole hydraulic chuck (Taiwan)
6,Taiwan hollowed rotary cylinder 6. 8″through hole hydraulic chuck(Taiwan)
7,station hydraulic turret 7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW

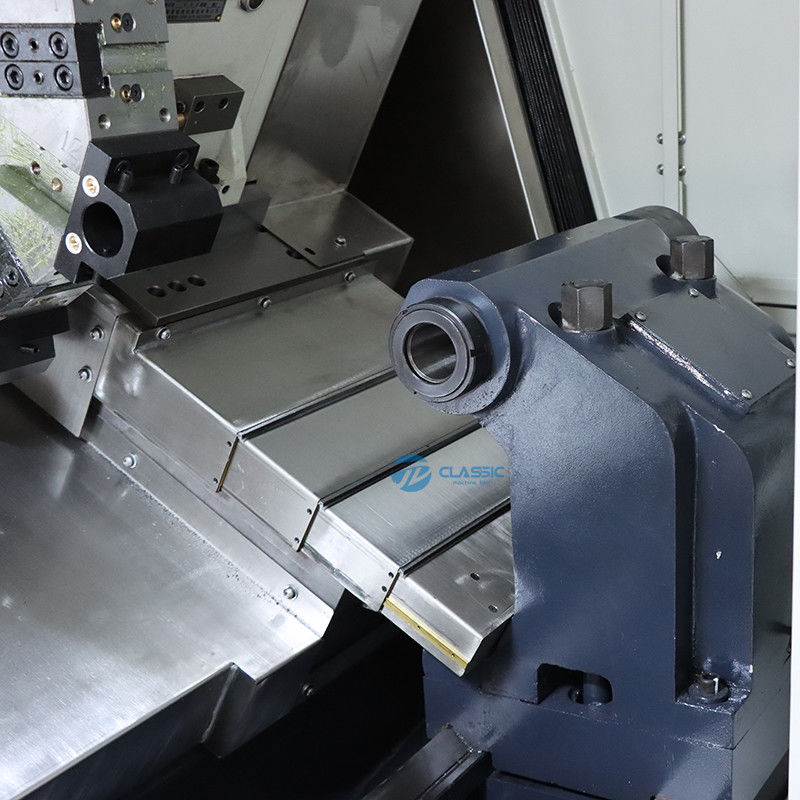

Detailed Images

Details Display

Recommend Products

Company Introduction

Packing&Shipping

FAQ

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.How can I choose the most suitable machines ?

A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard packed by iron pallets with plastic films
