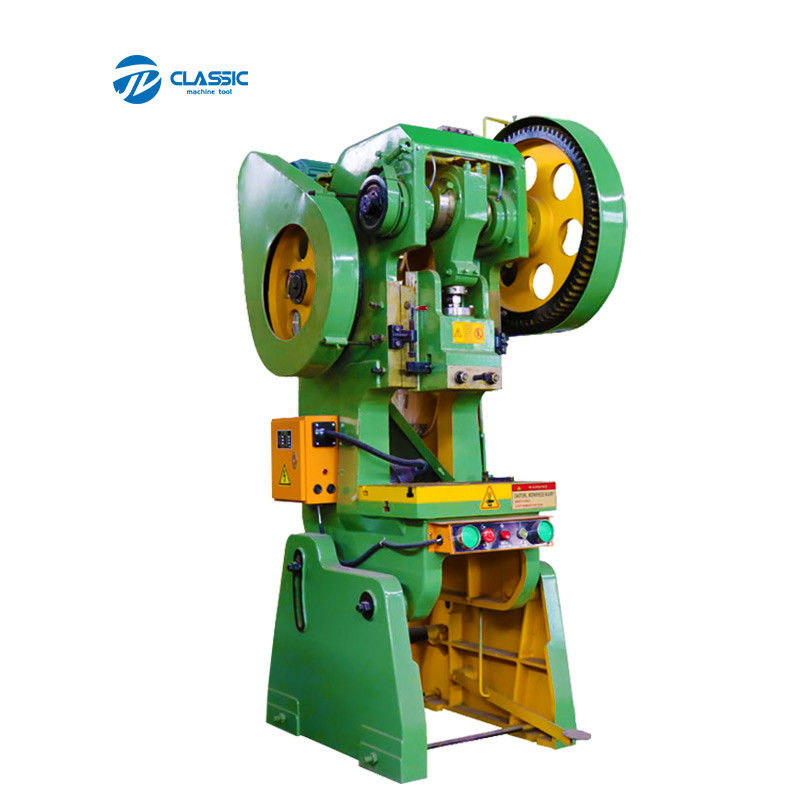

Promotional Automatic Eyelet Punching Hydraulic Punch Machine

Product Details:

Place of Origin:	CHN
Brand Name:	classic
Certification:	CE ISO
Model Number:	JB23-63

Payment & Shipping Terms:

Price:	$9,299.00/Sets 1-2 Sets
Packaging Details:	The machine will be packed by the plywood case<br>Hydraulic punch press J23 automatic eyelet punching machine
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

CNC Or Not:	Normal	Condition:	New
Machine Type:	Punching Machine	Slide Stroke (mm):	120
Power Source:	Mechanical	Voltage:	380v
Dimension(LWH):	185013002680mm	Motor Power (kW):	5.5
Weight (T):	1.48	Key Selling Points:	Competitive Price
Warranty:	1 Year	Applicable Industries:	Manufacturing Plant, Construction Works , Other
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge	Marketing Type:	New Product 2022
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided

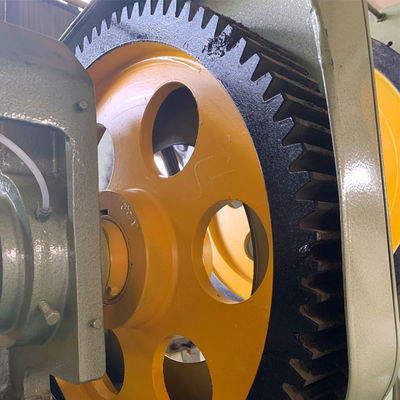

Warranty Of Core Components:	24 Months	Core Components:	Gear
Stroke Under Nominal Force:	8.5mm	Slide Block Stroke:	120mm
Number Of Stroke:	50times/min	Die Set Height:	260mm
Die Set Height Adjustment:	90mm	Workable Dimensions:	480*800mm
Dimensions Of Slide Block:	270*310mm	Thickness Of Bolster:	90mm
Port:	Qingdao Or Shanghai Port

Product Description

Application:
1, Suitable for blanking, punching, forming, bending, stretching and other cold stamping process to achieve.
2, Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial areas.

Product main technical Specifications

Type Spcification			Unit	JB23-15	JB23-25	JB23B-40	JB23-63	JB23-80	JB23-100
Nominal force			kN	160	250	400	630	800	1000
Stroke under nominal force			mm	5	6	6	8.5	8.5	10
Slide block stroke			mm	55	80	80	80	120	130
Number of stroke			times/min	120	60	50	50	50	45
Max die set height			mm	220	220	250	270	340	340
Die set height adjustment			mm	45	45	60	80	80	100
Distance from slide block center to the frame			mm	160	230	210	260	260	280
Workable dimensions(F·B×L·R)			mm	300*450	400*520	410*630	480*710	480*800	500*900
Dimensions of worktable hole			mm	Φ100	Φ120	Φ155	Φ220	Φ220	Φ180
Thickness of bolster			mm	45	50	70	90	90	95
Dimensions of slide block(F·B×L·R)			mm	180*200	180*200	190*210	270*310	270*310	360*400
Size of the handle hole(Diameter×Depth)			mm	Φ40*60	Φ40*60	Φ50*70	Φ50*70	Φ60*80	Φ60*80
Distance between columns of body			mm	220	250	360	350	350	420
Motor	Type		Y90L-6	Y100L-4	Y112M-4	Y132S-4	Y132S-4	Y132S-4
	Power	kw	1.5	3	4	5.5	5.5	7.5
Max. tilting angel of body			º	25	25	25	25	20	20
Outline dimension(F·B×L·R×H)			mm	1130830 1890	1120860 2200	16001100 2250	17401100 2560	18501265 2650	20501400 2850
Net weight			Kg	1090	2100	2960	3800	5015	6120

The main performance characteristics:
1, Steel plate welding machine, good rigidity, more stable accuracy.
2, Crankshaft longitudinal, compact structure, beautiful appearance.
3, Electric adjustment of the height of the mould, digital display control height.
4, Rectangular block with a lengthened guide, bronze lining board, high guidance accuracy.
5, Combined pneumatic friction clutch brake, joint stable, action sensitivity.
6, Collapse type safety device, to ensure the safety of the whole machine.

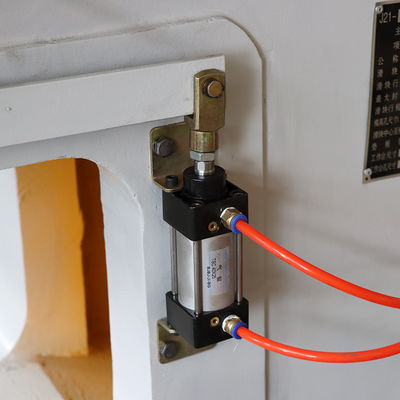

7, Slider is high, there is a lifting type balance cylinder, to achieve the balance of the slider bar.
8, The slider can be moved with a small movement, emergency stop motion, more secure operation.
9, The circuit uses double valve control, the action is nimble, accord with the safety standard of press.

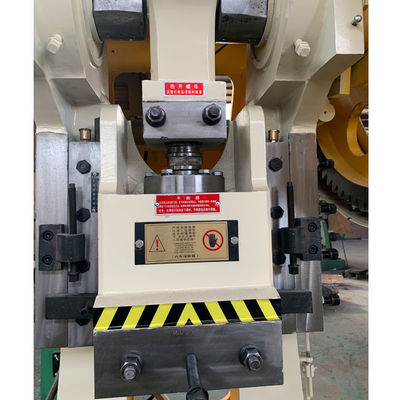

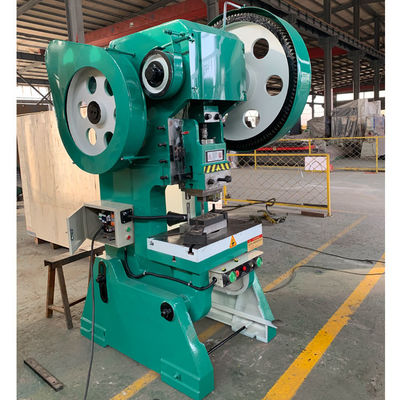

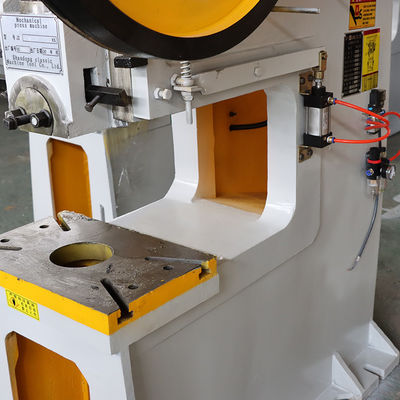

Detailed Images

Company Introduction

Packing&Shipping

Sales And Service Network

FAQ

1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures toyou.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
