| Place of Origin: | Shandong, China |
| Brand Name: | Classic |
| Price: | $19,530.00/Sets 1-2 Sets |
|---|---|
| Packaging Details: | The machine will be packed by the plywood case<br>3 axis 4 axis 5 axis cnc milling machine VMC650 metal fresadora Taiwan vertical machining center manufacturer |
| Supply Ability: | 50 Set/Sets per Month |
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2300*2200*2400mm | Weight (T): | 4.5 T |
| Table Size (mm): | 900x400 | CNC Control System: | GSK |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 650 Mm |
| Table Travel (Y) (mm): | 400 Mm | Table Travel (Z) (mm): | 500 Mm |
| Positioning Accuracy (mm): | 0.020 | Repeatability (X/Y/Z) (mm): | 0.004 |
| Range Of Spindle Speed(r.p.m): | 60 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5 |
| Max. Table Load(kg): | 450 Kg | Feed Speed(mm/min): | 60 - 1000 Mm/min |
| Rapid Feed Speed(m/min): | 24/24/20 | Min. Time Of Tool Change(s): | 1 |
| Tool Magazine Capacity: | 16, 24 | Key Selling Points: | Automatic |
| Warranty: | 2 Years | Voltage: | 380V 240V |
| Applicable Industries: | Hotels | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Bearing | X/Y/Z Axis Servo Motor Torque: | 10/10/15N.M |
| Automatic Tools Changer: | 16 Armless Type(optional:24 Arm | Tool Length: | 250/350mm |
| Tool Diameter: | 100(Adjacent)/150(Apart) | Cutting Feed Speed: | 10m/min |

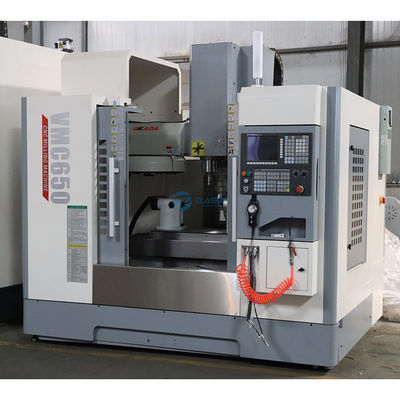

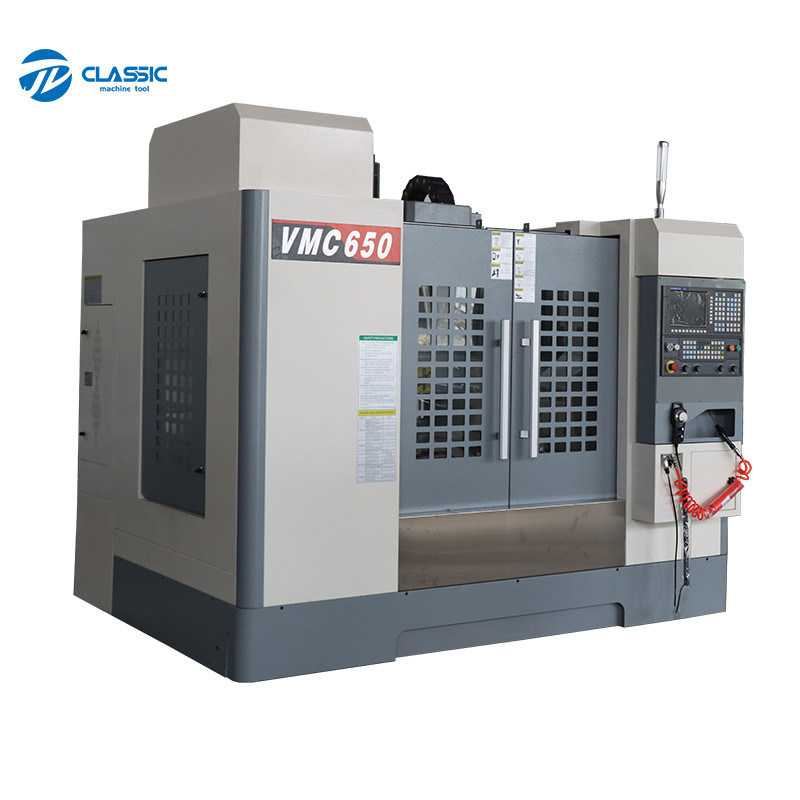

| Machine Type: | CNC Vertical Machining Center | Product Name: | 3-axis Vertical Cnc Machining Center |
| Application: | Metal Machining | Product Type: | Cnc 3 Axis Machine |
| Controlling Mode: | Fanuc Mitsubishi Siemens Gsk System | Port: | Qingdao Or Shanghai Port |
specifications | unit | VMC650 |
Table size | mm | 800x400 |
X axis travel | mm | 650 |
Y axis travel | mm | 400 |
Z axis travel | mm | 500 |
Distance between spindle center and column surface | mm | 469 |
Distance between spindle nose and table surface | mm | 100-600 |
T slot | 3-18*125 | |
Spindle taper | mm | BT40 |
Max. spindle speed | r/min | 8000(10000 optional) |
Main motor power | kw | 5.5 |
X/Y/Z axis servo motor torque | N.M | 10/10/15 |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | 3 axis linear guide rail | |
Max.table load | kg | 450 |
Automatic tools changer | 16 Armless type(optional:24 arm type) | |
Max.tool weight | kg | 7 |
Max. tool length | mm | 250/350 |
Max. tool diameter | mm | 100(Adjacent)/150(Apart) |
X/Y/Z axis rapid traverse | M/min | 24(optional :48) |
Cutting feed speed | M/min | 10 |
Position accuracy | mm | ±0.005 |
Repeat positioning accuracy | mm | ±0.003 |
Machine dimension | mm | 2400x2000x2550 |
Machine weight | kg | 4000 |
Serial number | Name | Specifications or markings | Quantity |
1 | Spring chuck handle | MAS BT40-ER32-100L | 1 |
2 | Spring chuck | 1 | |
3 | Rivet | P40T-1-MAS403 | 1 |
4 | Hook wrench | 1 | |
5 | Allen wrenches | 1 | |
6 | Adjustable horn and bolts | 4 |
Serial number | Name | model | Origin | Quantity |

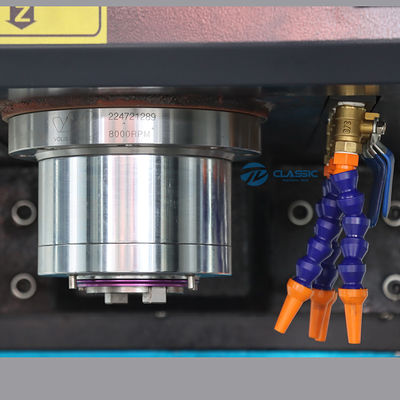

1 | Spindle unit | BT40 | Taiwan posn | 1 |
2 | Pressed cylinder | Taiwan Haocheng | 1 | |

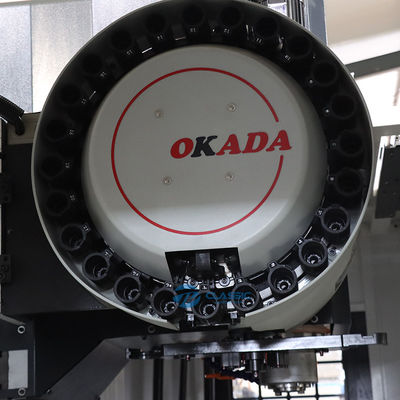

3 | ATC | 16 | Taiwan okada | 1 |
4 | X Ball Screws | Taiwan Hiwin | 1 | |
5 | y Ball Screws | Taiwan Hiwin | 1 | |
6 | Z Ball Screws | Taiwan Hiwin | 1 | |
7 | Screw bearings | china | 3 | |
8 | guide | X, Y,Z all is ball line | Taiwan Hiwin | 3 |

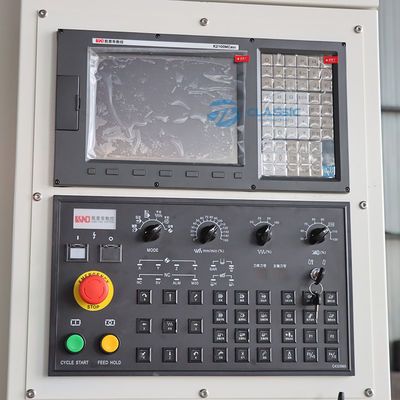

9 | control system | Knd/gsk | 1 | |
10 | Three axes Motor and drive | MAXSINE | 1 | |
11 | Cooling the pump | PMY-25-5 | china | 1 |
12 | Lubrication system | Single wire damping | Taiwan Hurun | 1 |
13 | Pneumatic system | Taiwan Airtac | 1 |
