| Place of Origin: | Shandong, China |
| Brand Name: | classic |
| Price: | $26,000.00/Sets 1-2 Sets |
|---|---|

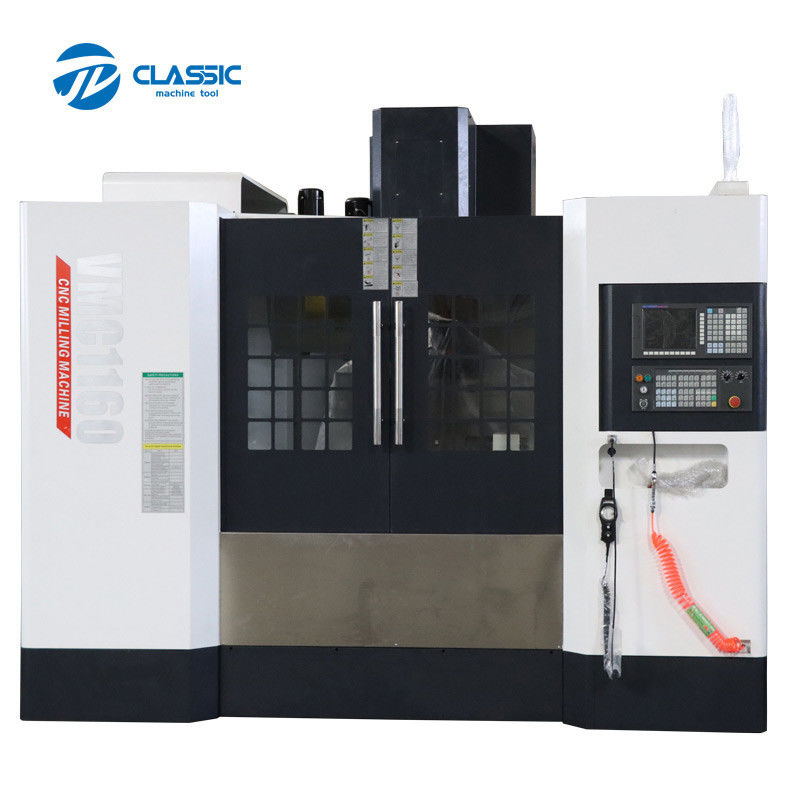

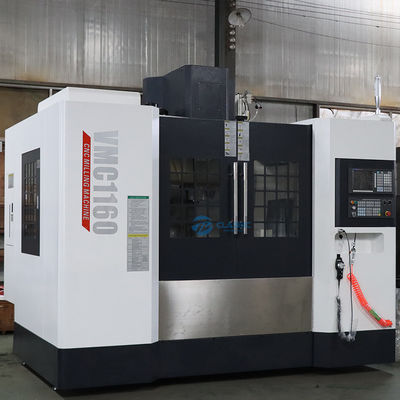

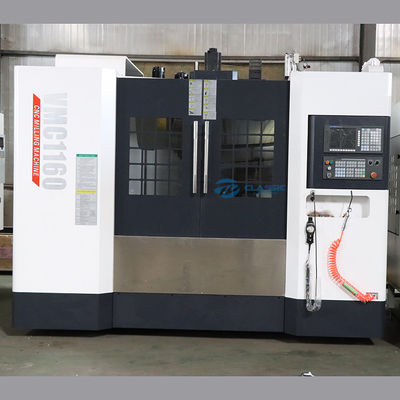

| Packaging Details: | The machine will be packed by the plywood case<br>China multifunction vmc vertical machining center VMC 1160 cnc milling machine |
| Supply Ability: | 100 Set/Sets per Month |
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Twin | Type: | VERTICAL |
| Dimension(L*W*H): | 3400*2480*2960mm | Weight (T): | 7.5 T |
| Table Size (mm): | 1200x600 | CNC Control System: | GSK, FANUC, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1100 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | 0.010 | Repeatability (X/Y/Z) (mm): | 0.004 |
| Range Of Spindle Speed(r.p.m): | 60 - 8000 R.p.m | Spindle Motor Power(kW): | 15 |
| Max. Table Load(kg): | 900 Kg | Feed Speed(mm/min): | 10 - 10000 Mm/min |
| Rapid Feed Speed(m/min): | 20/20/15 | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 16, 24 | Key Selling Points: | Automatic |
| Warranty: | 2 Year | Voltage: | 380V |
| Applicable Industries: | Hotels, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Sri Lanka, Romania, Bangladesh, Sou |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Bearing | Table Size: | 1300*600mm |
| X/Y/Z Axis Travel: | 1100/600/6000mm | Spindle Speed: | 8000rpm |
| T Slot: | 5-18*120mm | X/Y/Z Axis Rapid Feed: | 20/20/15m/min |
| Tool Length: | 250/350mm | Spindle Nose To Table Surface: | 180-780mm |
| Spindle Center To Column Surface: | 600mm | Machine Type: | CNC Vertical Machining Center |
| Port: | Qingdao Or Shanghai Port |
Serial number | Name | Specifications or markings | Quantity |
1 | Spring chuck handle | MAS BT40-ER32-100L | 1 |
2 | Spring chuck | 1 | |
3 | Rivet | P40T-1-MAS403 | 1 |
4 | Hook wrench | 1 | |
5 | Allen wrenches | 1 | |
6 | Adjustable horn and bolts | 4 |
Serial number | Name | model | Origin | Quantity |
1 | Spindle unit | BT40 | Taiwan posn | 1 |
2 | Pressed cylinder | Taiwan Haocheng | 1 | |

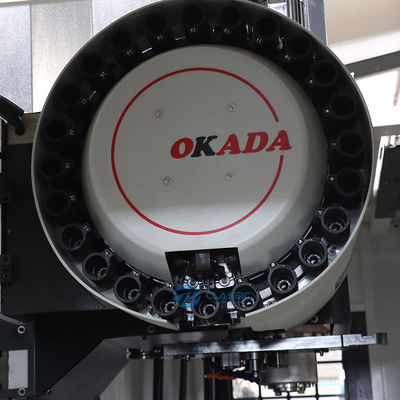

3 | ATC | 16 | Taiwan okada | 1 |
4 | X Ball Screws | Taiwan Hiwin | 1 | |
5 | y Ball Screws | Taiwan Hiwin | 1 | |
6 | Z Ball Screws | Taiwan Hiwin | 1 | |
7 | Screw bearings | china | 3 | |
8 | guide | X, Y,Z all is ball line | Taiwan Hiwin | 3 |
9 | control system | Knd/gsk | 1 | |
10 | Three axes Motor and drive | MAXSINE | 1 | |
11 | Cooling the pump | PMY-25-5 | china | 1 |
12 | Lubrication system | Single wire damping | Taiwan Hurun | 1 |
13 | Pneumatic system | Taiwan Airtac | 1 |
