| Place of Origin: | Shandong, China |
| Brand Name: | classiccnc |
| Price: | $26,000.00/Sets 1-2 Sets |
|---|---|
| Packaging Details: | The machine will be packed by the plywood case<br>Factory direct sales cnc milling machine VMC1160 CNC vertical machining center with CE certification |
| Supply Ability: | 100 Set/Sets per Month |
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3400*2480*2960mm | Weight (T): | 7.5 T |
| Table Size (mm): | 1200x600 | CNC Control System: | GSK, FANUC, KND, Siemens |
| Number Of Axes: | 3, 4 | Table Travel (X) (mm): | 1100 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | 0.010 | Repeatability (X/Y/Z) (mm): | 0.004 |
| Range Of Spindle Speed(r.p.m): | 60 - 8000 R.p.m | Spindle Motor Power(kW): | 15 |
| Max. Table Load(kg): | 900 Kg | Feed Speed(mm/min): | 10 - 10000 Mm/min |
| Rapid Feed Speed(m/min): | 20/20/15 | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 16 | Key Selling Points: | Automatic |
| Warranty: | 2 Year | Voltage: | 380V |
| Applicable Industries: | Hotels | Showroom Location: | Egypt, Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Sri Lanka, Romania, Bangladesh, Sou |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Bearing | Table Size: | 1300*600mm |
| X/Y/Z Axis Travel: | 1100/600/6000mm | Spindle Speed: | 8000rpm |
| T Slot: | 5-18*120mm | X/Y/Z Axis Rapid Feed: | 20/20/15m/min |
| Tool Length: | 250/350mm | Spindle Nose To Table Surface: | 180-780mm |
| Spindle Center To Column Surface: | 600mm | Machine Type: | CNC Vertical Machining Center |
| Port: | Qingdao Or Shanghai Port |
CNC machining machines for sale message center | VMC1060 | VMC1160 | VMC1370 |
table size | 1200*600mm | 1200*600mm | 1300*710mm |
Max. table load | 800KG | 800kg | 1000kg |
T slot qty-width*distance | 5-18*120mm | 5-18*122 | 5-18*152.5 |
spindle speed | 8000r/min | 8000rpm | 8000rpm |
spindle nose to table surface | 120-720mm | 120-720mm | 150-800mm |
Spindle center to Column surface | 650mm | 650mm | 785mm |
Spindle taper | BT40 | BT50 | BT50 |
Main motor power | 11/15kw | 11/15kw | 11/15kw |
Three-axis servo motor power | 3/3/4.5kw | 3/3/4.5kw | 3/3/4.5kw |
X/Y/Z axis travel | 1000/600/600mm | 1100/600/600mm | 1300/700/700mm |
X/Y/Z axis rapid feed | 36/36/36m/min | 36/36/36m/min | 36/36/36m/min |
Cuttinng rapid feed | 1-10000mm/min | 1-10000mm/min | 1-10000mm/min |

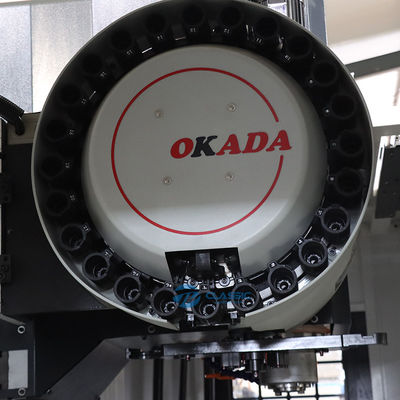

Tool changer type Tools capacity | drum/ hat type (arm type optional ) 16/24 | disc type 24 | disc type 24 |
Max.tool(kinfe) weight | 8kg | 15kg | 15kg |
Repeat positioning accuracy | ±0.004 | ±0.004mm | ±0.004mm |
Net weight | 4800kg | 5200kg | 6000kg |
Overall dimension | 2800*2150*2350mm | 2900*2150*2350mm | 3200*2150*2350mm |
