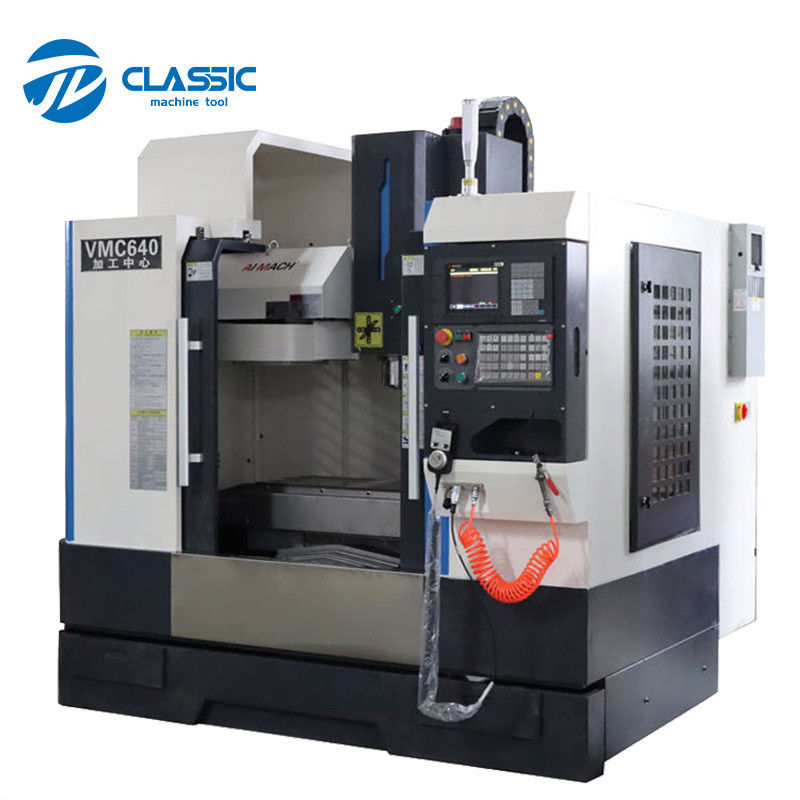

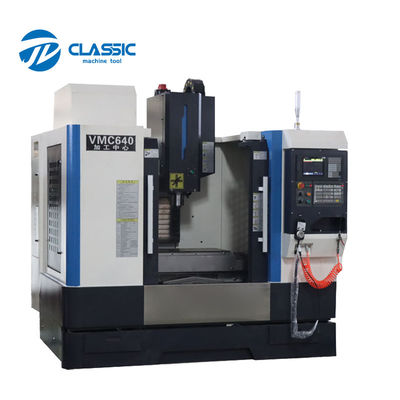

High-precision VMC640 3 axis small CNC vertical machining center with Siemens controller

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Classic

Payment & Shipping Terms:

Price:	$17,000.00/Sets 1-2 Sets
Packaging Details:	The machine will be packed by the plywood case<br>High-precision VMC640 3 axis small CNC vertical machining center with Siemens controller
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Spindle Taper:	BT40
No. Of Spindles:	Twin	Type:	VERTICAL
Dimension(LWH):	250020002450mm	Weight (T):	3 T
Table Size (mm):	800x400mm	CNC Control System:	GSK, FANUC, MITSUBISHI, KND, Siemens
Number Of Axes:	3, 4, 5	Table Travel (X) (mm):	600 Mm
Table Travel (Y) (mm):	360 Mm	Table Travel (Z) (mm):	450 Mm
Positioning Accuracy (mm):	0.01	Repeatability (X/Y/Z) (mm):	0.004
Range Of Spindle Speed(r.p.m):	20 - 8000 R.p.m	Spindle Motor Power(kW):	5.5
Max. Table Load(kg):	300 Kg	Feed Speed(mm/min):	1 - 1000 Mm/min
Rapid Feed Speed(m/min):	20/20/15	Min. Time Of Tool Change(s):	2
Tool Magazine Capacity:	16	Key Selling Points:	Automatic
Warranty:	2 Years	Voltage:	380V 240V
Applicable Industries:	Hotels, Machinery Repair Shops, Manufacturing Plant	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Marketing Type:	New Product 2021	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	2 Years
Core Components:	Bearing	X/Y/Z Axis Servo Motor Torque:	10/10/15N.M
Automatic Tools Changer:	16 Armless Type(optional:24 Arm	Tool Length:	250/350mm
Tool Diameter:	100(Adjacent)/150(Apart)	Cutting Feed Speed:	10m/min
Machine Type:	CNC Vertical Machining Center	Product Name:	3-axis Vertical Cnc Machining Center
Application:	Metal Machining	Product Type:	Cnc 3 Axis Machine
Controlling Mode:	Fanuc Mitsubishi Siemens Gsk System	Port:	Qingdao Or Shanghai Port

Product Application
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Specifications	Units	VMC550	VMC640	VMC650
Table size	mm	700x350	1000x360	800x400
X axis travel	mm	550	600	650
Y axis travel	mm	350	360	400
Z axis travel	mm	500	450	500
Max. worktable load	kg	300	300	400
T slot(number-width-pitch)		3-18x105	3-16x110	3-18x125
Max. spindle speed	rpm	8000(Optional:10000 )	8000(Optional:10000 )	8000(Optional:10000 )
Spindle taper	mm	BT40	BT40	BT40
Main motor power	kw	5.5	5.5	5.5
X/Y/Z rapid traverse speed	m/min	24/24/20 (Optional:48/48/36 )	24/24/20 (Optional:48/48/36 )	24/24/20 (Optional:48/48/36 )
Cutting feed speed	mm/min	1-10000	1-10000	1-10000
Guide rail type		Linear rail	Linear rail	Linear rail
Distance from spindle axis to column surface	mm	400	410	469
Distance between spindle nose and worktable surface	mm	100-600	100-550	100-600
Positioning accuracy	mm	±0.0075	±0.0075	±0.0075
Repeat positioning accuracy	mm	±0.005	±0.005±	±0.005
Tool magazine		16 Armless/(Optional: Arm 24 )	16 Armless/(Optional: Arm 24 )	16 Armless/(Optional: Arm 24 )
Max. tool diameter	mm	φ90	φ90	φ90
Max.tool weight	kg	8	8	8
Machine weight	kg	3200	3000	4000
Overall dimension	mm	2100X1950X2300	1900x1700x2100	2400x2000x2550

Standard Accessories:

Serial number	Name	Specifications or markings	Quantity
1	Spring chuck handle	MAS BT40-ER32-100L	1
2	Spring chuck		1
3	Rivet	P40T-1-MAS403	1
4	Hook wrench		1
5	Allen wrenches		1
6	Adjustable horn and bolts		4

The functional parts table

Serial number	Name	model	Origin	Quantity

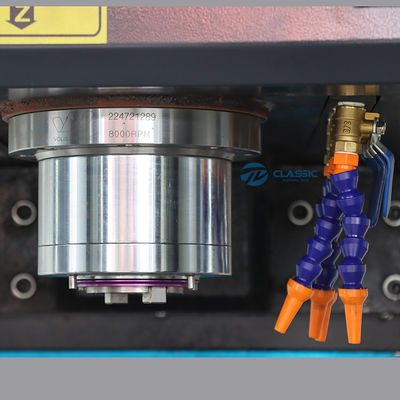

1	Spindle unit	BT40	Taiwan posn	1
2	Pressed cylinder		Taiwan Haocheng	1

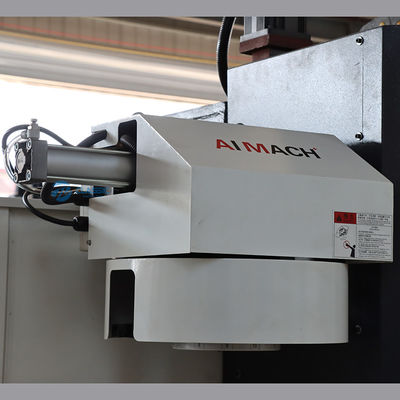

3	ATC	16	Taiwan okada	1
4	X Ball Screws		Taiwan Hiwin	1
5	y Ball Screws		Taiwan Hiwin	1
6	Z Ball Screws		Taiwan Hiwin	1
7	Screw bearings		china	3
8	guide	X, Y,Z all is ball line	Taiwan Hiwin	3

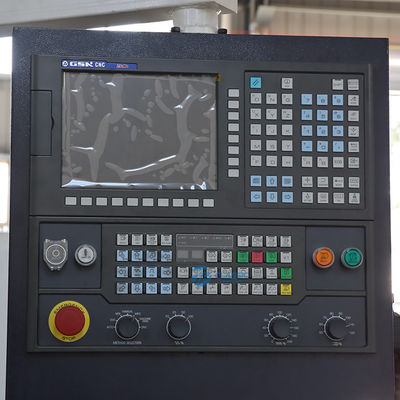

9	control system		Knd/gsk	1
10	Three axes Motor and drive		MAXSINE	1
11	Cooling the pump	PMY-25-5	china	1
12	Lubrication system	Single wire damping	Taiwan Hurun	1
13	Pneumatic system		Taiwan Airtac	1

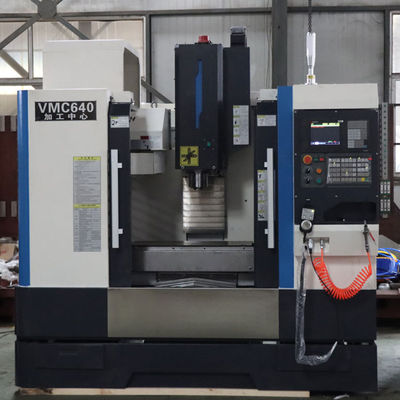

Detailed Images

Recommend Products

Company Introduction

Packing&Shipping

FAQ

1. What is the payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will

take pictures to you.after we got your balance payment. we will send the machine to you. 2. What is your trade terms? A : FOB, CFR and CIF all acceptable. 3.How can I choose the most suitable machines ? A: Please let us know your machining demand or machine size ,we can choose the best model for you ,

or you can choose the exact model by yourself. You can also send us the products drawing ,we will

choose the most suitable machines for you .

4. What is your trade terms? A : FOB, CFR,CIF or others terms are all acceptable. 5. What is your minimum order quantity and warranty? A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine. 6. What is the package of the machines? A: The machines standard packed by iron pallets with plastic films
