| Place of Origin: | Shandong, China |
| Brand Name: | Classic |
| Price: | $30,000.00/Sets 1-2 Sets |
|---|---|
| Packaging Details: | The machine will be packed by the plywood case<br>Hot sale BT40 Taiwan spindle CNC machining center VMC850 5 axis vertical milling machine center |
| Supply Ability: | 50 Set/Sets per Month |
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Twin | Type: | VERTICAL |
| Dimension(L*W*H): | 2750x2300x2300MM | Weight (T): | 5.2 T |
| Table Size (mm): | 1000x500 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 500 | Table Travel (Z) (mm): | 500 |
| Positioning Accuracy (mm): | 0.001 | Repeatability (X/Y/Z) (mm): | 0.004 |
| Range Of Spindle Speed(r.p.m): | 1 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5 |
| Max. Table Load(kg): | 500 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Rapid Feed Speed(m/min): | 20/20/15 | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 16, 24 | Key Selling Points: | Automatic |
| Warranty: | 2 Years | Voltage: | 380V 240V |
| Applicable Industries: | Hotels, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge |
| Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Bearing | X/Y/Z Axis Servo Motor Torque: | 10/10/15N.M |
| Automatic Tools Changer: | 16 Armless Type(optional:24 Arm | Tool Length: | 250/350mm |
| Tool Diameter: | 100(Adjacent)/150(Apart) | Cutting Feed Speed: | 10m/min |
| Machine Type: | CNC Vertical Machining Center | Product Name: | 3-axis Vertical Cnc Machining Center |
| Application: | Metal Machining | Product Type: | Cnc 3 Axis Machine |
| Controlling Mode: | Fanuc Mitsubishi Siemens Gsk System | Port: | Qingdao Or Shanghai Port |
|
Specificatioin
|
VMC850
|
|
X-axis travel
|
800mm
|
|
Y-axis travel
|
500mm
|
|
Z-axis travel
|
500mm
|
|
Spindl nose to table surface
|
150-650mm
|
|
Spindle center to column surface
|
550mm
|
|
Table size
|
1000×500mm
|
|
Max.loading
|
500kg
|
|
T-slot width
|
18mm
|
|
T-slot quantity
|
5
|
|
Spindle taper
|
BT40
|
|
Spindle speed
|
8000rpm
|
|
Spindle motor
|
7.5kw
|
|
Max.tool dia
|
φ80/φ150mm
|
|
Max.tool length
|
200mm
|
|
Max.tool weight
|
8kg
|
|
X,Y axis rapid feed
|
24000mm
|
|
Z axis rapid feed
|
20000mm
|
|
Cutting feed
|
1-10000mm/min
|
|
Position accuracy
|
±0.01mm
|
|
Repeat positioning accuracy
|
±0.003/300mm
|
|
Power device capacity
|
15KVA
|
|
Coolant system capacity
|
200L
|
|
Cooling pump power
|
120W
|
|
Cooling pump flow
|
50L/min
|
|
Coolant system rated head
|
10m
|
|
Using air pressure
|
0.6MPa
|
|
Dimensions
|
2750×2300×2300mm
|
|
Net weight
|
5200Kg
|
|
Serial number
|
Name
|
Specifications or markings
|
Quantity
|
|
1
|
Spring chuck handle
|
MAS BT40-ER32-100L
|
1
|
|
2
|
Spring chuck
|
|
1
|
|
3
|
Rivet
|
P40T-1-MAS403
|
1
|
|
4
|
Hook wrench
|
|
1
|
|
5
|
Allen wrenches
|
|
1
|
|
6
|
Adjustable horn and bolts
|
|
4
|
|
Serial number
|
Name
|
model
|
Origin
|
Quantity
|
|
1
|
Spindle unit
|
BT40
|
Taiwan posn
|
1
|
|
2
|
Pressed cylinder
|
|
Taiwan Haocheng
|
1
|
|
3
|

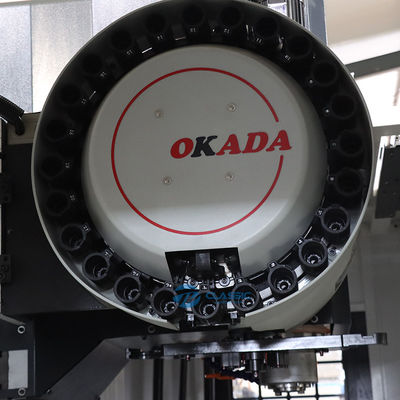

ATC
|
16
|
Taiwan okada
|
1
|
|
4
|
X Ball Screws
|
|
Taiwan Hiwin
|
1
|
|
5
|
y Ball Screws
|
|
Taiwan Hiwin
|
1
|
|
6
|
Z Ball Screws
|
|
Taiwan Hiwin
|
1
|
|
7
|
Screw bearings
|
|
china
|
3
|
|
8
|
guide
|
X, Y,Z all is ball line
|
Taiwan Hiwin
|
3
|
|
9
|
control system
|
|
Knd/gsk
|
1
|
|
10
|
Three axes Motor and drive
|
|
MAXSINE
|
1
|
|
11
|
Cooling the pump
|
PMY-25-5
|
china
|
1
|
|
12
|
Lubrication system
|
Single wire damping
|
Taiwan Hurun
|
1
|
|
13
|
Pneumatic system
|
|
Taiwan Airtac
|
1
|
