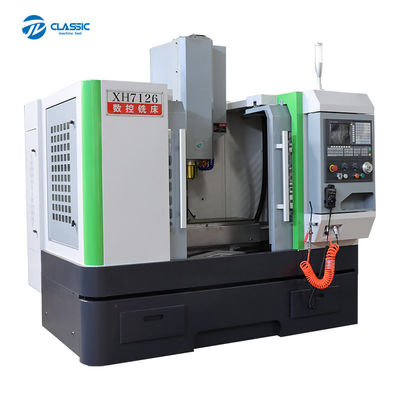

Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile

Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile

  • Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile
Product Details:
Place of Origin: Shandong, China
Brand Name: Classiccnc
Model Number: XH7126
Payment & Shipping Terms:
Price: $12,999.00/Sets 1-2 Sets
Packaging Details: The machine will be packed by the plywood case<br>High quality Fanuc controller vertical CNC machine center XH7126 aluminum profile CNC milling machine for sale
Supply Ability: 50 Set/Sets per Month
Contact Now
Detailed Product Description
Type: VERTICAL Range Of Spindle Speed(r.p.m): 1 - 6000
Number Of Axes: 4 No. Of Spindles: Single
Machining Capacity: Medium Duty Spindle Taper: BT40/BT30
Table Travel (X) (mm): 450 Table Travel (Y) (mm): 320
Table Travel (Z) (mm): 420 Positioning Accuracy (mm): ±0.01
Repeatability (X/Y/Z) (mm): ±0.005 Condition: New
Table Travel (mm): 800*260 Year: 2022
Voltage: 380/240V Dimension(L*W*H): 2600*1950*2400mm
CNC Control System: GSK/fanuc/KND/Siemens Key Selling Points: Automatic
Weight (KG): 2400 Spindle Motor Power(kW): 3.7
Warranty: 2 Years Max. Table Load(kg): 500 Kg
Applicable Industries: Garment Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Other Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Marketing Type: New Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 24 Months
Core Components: Bearing, Motor, Gear, Engine Product Name: Milling Machine Center Frame
Machine Type: Machining Center Application: Metal Processing
Function: Vertical Milling Machining Name: 3 Axis Milling Machine
Keyword: Cnc 3 Axis Milling Machine Precision: High Precision
Product Type: Cnc 3/4/5 Axis Machine Usage: Processing Machine
CNC Or Not: CNC Machining Center Port: Qingdao Or Shanghai Port

Products Description
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 0
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 2
Product Application

Suitable for drilling ,hole-expansion ,reaming ,bevel edge ,and tapping, for surface milling, step plane ,slope ,and milling groove , for cuttingand milling curve ,curve surface and cam.Have the function of stepless speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

Specificiton
XH7126
Worktable size (LXW)
800X260mm
T-slot (NXWXD)
3/14/80mm
X axis travel
450mm
Y axis travel
320mm
Z axis travel
450mm
Distance from spindle nose to worktable surface
90-470mm
Distance from spindle center to column
360mm
Rapid feed speed (X/Y/Z)
15/15/15 m/min.
Spindle taper
BT40
Spindle speed
6000rpm or 8000rpm
Main motor power
3.7Kw
Servo motor torque (X/Y/Z)
6/6/7.7 N.m
Overall size (LXWXH)
2100X1800X1960mm
Net weight
2400kg
Net Weight
2500kg
Overall Dimension
1900x1800x2100
Standard Accessories: Optional Accessories:

Standard Configuration: SIEMENS 808D BASIC/828D CNC Controller
·KND-1000MI 16T DISC type tool magazine
·X/Y/Z axes SIEMENS servo motor&driver WITHOUT tool magazine(CNC Milling)
·Servo spindle motor&driver BOX guideway or LINEAR guideway
·10T FUNNEL type tool magazine 4th axes(NC Dividing Head)
·Full closed cover CE protection
Detailed Images
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 4
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 6
Details Display
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 8
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 10
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 12
Recommend Products

Company Introduction
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 14
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 16
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 18
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 20
Packing&Shipping
Fanuc controller CNC milling machine vertical CNC machine center XH7126 aluminum profile 22
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
