| Place of Origin: | Shandong, China |
| Brand Name: | Classic |
| Price: | $26,000.00/Sets 1-1 Sets |
|---|---|

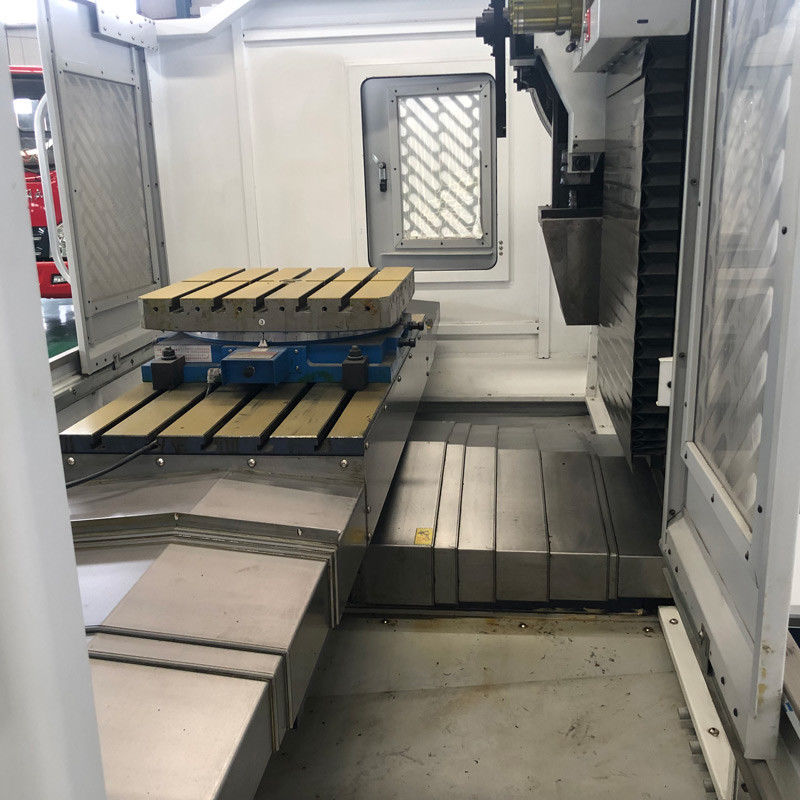

| Packaging Details: | The machine will be packed by the plywood case<br>CNC horizontal machining center HMC500 3 axis vertical CNC milling machine made in China |
| Supply Ability: | 500 Set/Sets per Year |
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 1 | Type: | Horizontal |
| Dimension(L*W*H): | 3000*2450*2650mm | Weight (T): | 6.5 T |
| Table Size (mm): | 800*500 | CNC Control System: | GSK, KND, Siemens |
| Number Of Axes: | 4 | Table Travel (X) (mm): | 800 Mm |
| Table Travel (Y) (mm): | 650 Mm | Table Travel (Z) (mm): | 500 Mm |
| Positioning Accuracy (mm): | 0.050 Mm | Repeatability (X/Y/Z) (mm): | 0.002mm |
| Range Of Spindle Speed(r.p.m): | 60 - 8000 R.p.m | Spindle Motor Power(kW): | 11/15 |
| Max. Table Load(kg): | 600 Kg | Feed Speed(mm/min): | 10 - 10000 Mm/min |
| Rapid Feed Speed(m/min): | 15/15/15 | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Multifunctional |
| Warranty: | 1 Year | Voltage: | 220V/380V/480V |
| Applicable Industries: | Machinery Repair Shops | Showroom Location: | Egypt, Italy, France, Germany, Viet Nam, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Bangladesh, South Africa, Ukraine, Kyrgyzstan |
| Marketing Type: | New Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Motor | T Slot: | 8-18*90mm |
| Spindle Nose To Table Surface: | 50-500mm | Spindle Center To Table: | 0-650mm |
| Machine Type: | CNC Machining Center | Application: | General Machinery Processing |
| Controlling Mode: | Fanuc Mitsubishi Siemens Gsk System | Product Type: | Cnc 3/4/5 Axis Machine |
| Processing: | Metal Cutting Cnc Milling Machine | Precision: | Precision |
| Function: | Machining Metal | Port: | Qingdao Or Shanghai Port |
|
Specifications
|
Units
|
HMC500
|
|
Table size
|
mm
|
500×500
|
|
X-axis travel
|
mm
|
600
|
|
Y-axis travel
|
mm
|
650
|
|
Z-axis travel
|
mm
|
520
|
|
Spindle nose to table
|
mm
|
180-710
|
|
Spindle center to table
|
mm
|
|
|
Rapid traverse (X/Y/Z)
|
mm/min
|
12000
|
|
Feed rate(X/Y)
|
mm/min
|
1-5000
|
|
Max. load of worktable
|
Kg
|
800
|
|
T-slot (slot number×width×pitch)
|
mm
|
5-14-80
|
|
Spindle speed
|
rpm
|
2400/6000
|
|
Spindle power
|
kw
|
7.5/11
|
|
Spindle taper
|
|
BT50
|
|
ATC
|
|
24
|
|
Magazine type
|
|
Mechanical hand knife
|
|
Maximum tool diameter
|
mm
|
Φ127/Φ178
|
|
Maximum tool length
|
mm
|
300
|
|
Maximum tool weigh
|
Kg
|
15
|
|
Tool change time
|
s
|
3
|
|
Positioning accuracy
|
mm
|
±0.003
|
|
Repeat accuracy
|
mm
|
±0.001
|
|
Machine weight
|
kg
|
10000
|
|
Dimensions
|
mm
|
2850*2530*2480
|
