| Place of Origin: | Shandong, China |
| Brand Name: | classic |
| Certification: | CE ISO |
| Model Number: | CK6136 |
| Price: | $7,999.00/Sets 1-2 Sets |
|---|---|

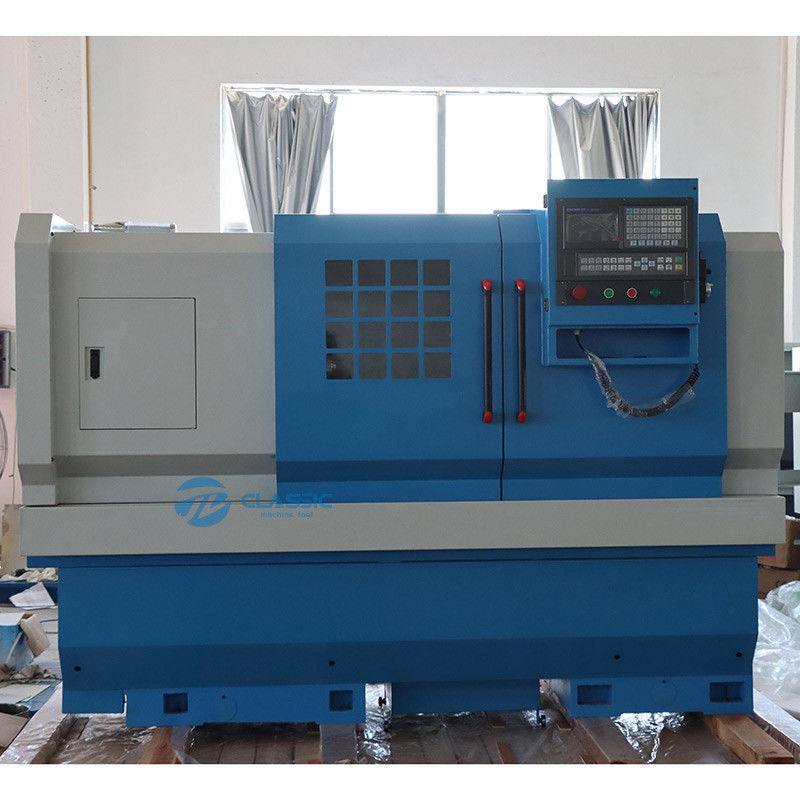

| Packaging Details: | The machine will be packed by the plywood case<br>New type metal work flat bed cnc machine CK6136 shandong lathe machines with low price |
| Supply Ability: | 50 Set/Sets per Month |
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| Year: | 2022 | Max. Length Of Workpiece (mm): | 1000 |
| Structure: | Flat Bed Lathe | Max. Spindle Speed (r.p.m): | 2500 R.p.m |
| Machining Capacity: | Medium Duty | Max. Weight Of Workpiece(kg): | 600 |
| Spindle Bore(mm): | 51 | Width Of Bed (mm): | 206 Mm |
| Spindle Motor Power(kW): | 3.0 | No. Of Spindles: | Single |
| Max. Turned Length (mm): | 1000 | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 280 Mm | Travel (Z Axis)(mm): | 560 Mm |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.012 |
| Dimension(L*W*H): | 2300*1100*1650mm | Voltage: | 220/380V |
| CNC Control System: | GSK | Toolpost Brand: | Hongda |
| Tool Post Stations: | 8, 4 | Weight (KG): | 1600 |
| Warranty: | 2 Years | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
| Key Selling Points: | Automatic | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge |
| Marketing Type: | New Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Bearing | Function: | Machining Metal Lathe |
| Keyword: | Automatic CNC Lathe Machine | Color: | Blue |
| CNC Controller: | GSK SIEMENS FANUC SYNTEC | Brand: | CLASSIC |
| Key Word: | Chinese Metal Lathe | Machine Type: | Lathe Machine CNC |
| Chuck: | Manual/Hydraulic 3 Jaw Chuck | Tool Holder: | 4/6/8station Electric Tool Holder |
| Port: | Qingdao Or Shanghai Port |
|
Specifications
|
unit
|
CK6136
|
CK6136B
|
CK6140
|
|
Max. swing over bed
|
mm
|
Φ360
|
Φ360
|
Φ400
|
|
Max. swing over cross slide
|
mm
|
Φ180
|
Φ180
|
Φ240
|
|
X/Z axis travel
|
mm
|
280/550
|
280/750
|
280/750
|
|
Spindle nose
|
|
A2-6
|
A2-6
|
A2-6/(A2-8(Optional)
|
|
Spindle bore
|
mm
|
Φ48
|
Φ48
|
Φ48/Φ82
|
|
Bar capacity
|
mm
|
Φ41
|
Φ41
|
Φ41/Φ65
|
|
Max. spindle speed
|
rpm
|
150-2000
|
150-2000
|
150-2000/150-1800
|
|
Chuck size
|
mm
|
200
|
200
|
200/250
|
|
Spindle motor
|
kW
|
5.5
|
5.5
|
5.5/7.5
|
|
X/Z axis repeatability
|
mm
|
±0.005
|
±0.005
|
±0.005
|
|
X/Z axis feed motor torque
|
N.m
|
X:4 Z:6
|
X:4 Z:6
|
X:4 Z:6
|
|
X/Z Rapid traverse
|
m/min
|
X:8 Z:10
|
X:8 Z:10
|
X:8 Z:10
|
|
Tailstock quill dia.
|
mm
|
Φ60
|
Φ60
|
Φ60
|
|
Quill traverse
|
mm
|
100
|
100
|
100
|
|
Quill taper
|
#
|
MT4
|
MT4
|
MT4
|
|
Tool post type
|
|
Four position electric turret
|
Four position electric turret
|
Four position electric turret
|
|
Cutting tool shape size
|
mm
|
20×20
|
20×20
|
20×20
|
|
Guide form
|
|
Double mountain
|
Double mountain
|
Double mountain
|
|
Total power capacity
|
KVA
|
9
|
9
|
11
|
|
Machine dimension (L×W×H)
|
mm
|
2000×1200×1620
|
2250×1160×1620
|
2200×1160×1620
|
|
Net. weight (about)
|
kg
|
1560
|
1700
|
1800
|
