| Place of Origin: | Shandong, China |
| Brand Name: | Classic |

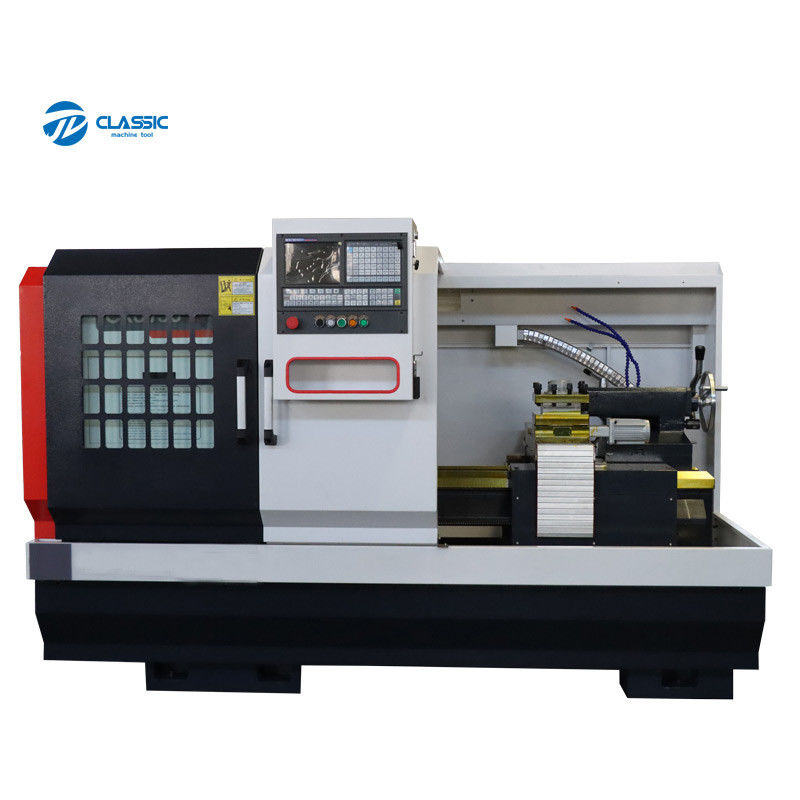

| Model Number: | CK6140 |
| Price: | $15,000.00/Sets 1-2 Sets |
|---|---|
| Packaging Details: | The machine will be packed by the plywood case<br>Hot selling lathe machine wood working lathe machines CK6140 with low price |
| Supply Ability: | 50 Set/Sets per Month |
| Condition: | New | Type: | Horizontal |
|---|---|---|---|
| Year: | 2022 | Max. Length Of Workpiece (mm): | 1000 |
| Structure: | Flat Bed Lathe | Max. Spindle Speed (r.p.m): | 1800 R.p.m |
| Machining Capacity: | Medium Duty | Max. Weight Of Workpiece(kg): | 100 |
| Spindle Bore(mm): | 52 | Width Of Bed (mm): | 400 Mm |
| Spindle Motor Power(kW): | 5.5 | No. Of Spindles: | Single |
| Max. Turned Length (mm): | 1000 | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 480 Mm | Travel (Z Axis)(mm): | 600 Mm |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.004 |
| Dimension(L*W*H): | 3200*1800*1900mm | Voltage: | 380V |
| CNC Control System: | GSK | Toolpost Brand: | Hongda |
| Tool Post Stations: | 6, 4 | Weight (KG): | 3900 |
| Warranty: | 2 Years | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
| Key Selling Points: | High-accuracy | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge |
| Marketing Type: | New Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Bearing | CNC Or Not: | CNC |
| Machine Type: | Flat Bed CNC Lathe | Name: | High Precision CNC Lathe Machine |
| Product Name: | CNC Lathe Mechine | Automatic Grade: | Automatic CNC Turning Machine |
| Model: | CK6140A CNC Lathes | Application: | Industrial Equipment |
| Control System: | GSK SIEMENS FANUC KND GUNT | Chuck: | 3 Jaw Chuck |
| Product Keywords: | Cnc Milling Machine 3 Axis | Port: | Qingdao Or Shanghai Port |
|
SPECIFICATIONS
|
Units
|
CK6140
|
|
Swing over bed
|
mm
|
400
|
|
Swing over cross slide
|
mm
|
210
|
|
Distance between centers
|
mm
|
750/1000/1500/2000
|
|
Spindle bore
|
mm
|
52(Optional 80)
|
|
Spindle bore taper
|
-
|
MT6
|
|
Spindle nose type
|
-
|
C6
|
|
Spindle speed steps
|
-
|
Manual 2 steps
|
|
Spindle speed range
|
rpm
|
L:100-500 H:500-1800 (Optional 90-1800 stepless)
|
|
Turret/tool post
|
-
|
Electric 4 position
|
|
Tool size
|
mm
|
25 x 25
|
|
X axis travel
|
mm
|
230
|
|
Z axis travel
|
mm
|
750/1000/1500/2000
|
|
X axis rapid traverse
|
mm/min
|
6000
|
|
Z axis rapid traverse
|
mm/min
|
8000
|
|
Tailstock quill diameter
|
mm
|
65
|
|
Tailstock quill taper
|
-
|
MT4
|
|
Tailstock quill travel
|
mm
|
130
|
|
Main spindle motor
|
kw
|
4
|
|
Coolant pump motor
|
kw
|
0.09
|
|
Weight for 750
|
kg
|
1700
|
|
Weight for 1000
|
kg
|
1800
|
|
Weight for 1500
|
kg
|
1900
|
|
Weight for 2000
|
kg
|
2000
|
|
Dimension for 750
|
mm
|
2200x1650x1700
|
|
Dimension for 1000
|
mm
|
2500x1650x1700
|
|
Dimension for 1500
|
mm
|
3000x1650x1700
|
|
No.
|
ITEM
|
Number
|
Standard configuration
|
|
1
|
Numerical control system
|
1/set
|
Optional system (gd980, Taiwan, FANUC, Siemens) etc.
|
|
2
|
Chuck
|
1/set
|
Three jaw chuck K11 250 (optional K11 320)
|
|
3
|
Tailstock
|
1/set
|
Manual tail base
|
|
4
|
X -ball screw
|
1/set
|
PRC
|
|
5
|
Z -ball screw
|
1/set
|
PRC
|
|
6
|
Electric turret
|
1/set
|
LD4B-A(6150)
|
|
7
|
X,Z-Lead screw bearing
|
1/set
|
PRC
|
|
8
|
X,Z- Coupling
|
1/set
|
PRC
|
|
9
|
Spindle bearing
|
1/set
|
PRC
|
|
10
|
Fuselage Casting
|
1/set
|
High quality resin sand casting
|
|
11
|
Spindle assembly
|
1/set
|
Assembly spindle
|
|
12
|
Spindle clamping
|
|
Manual chuck
|
|
13
|
Paint
|
1/set
|
Color can be configured according to customer requirements, not special requirements according to our standard color configuration
|
|
14
|
Lubrication
|
1/set
|
Joint venture (electric lubricating oil pump, lubricating oil circuit is installed)
|
