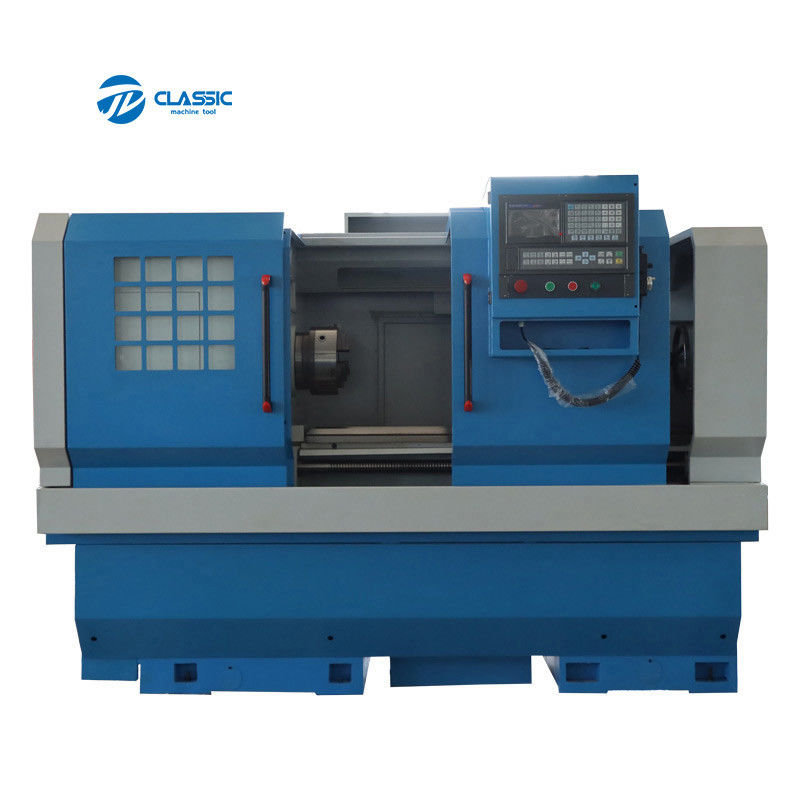

New type ck6136 mazak desktop machine cnc lathe machine made in China

New type ck6136 mazak desktop machine cnc lathe machine made in China

  • New type ck6136 mazak desktop machine cnc lathe machine made in China
New type ck6136 mazak desktop machine cnc lathe machine made in China
Product Details:
Place of Origin: Shandong, China
Brand Name: Classic
Model Number: CK6136
Payment & Shipping Terms:
Price: $9,999.00/Sets 1-2 Sets
Packaging Details: The machine will be packed by the plywood case<br>New type ck6136 mazak desktop machine cnc lathe machine made in China
Contact Now
Detailed Product Description
Condition: New Max. Length Of Workpiece (mm): 1500
Range Of Spindle Speed(r.p.m): 120 - 2500 R.p.m Machining Capacity: Medium Duty
Spindle Bore(mm): 52/82 Width Of Bed (mm): 330
Max. Turned Length (mm): 1500 Mm Type: Horizontal
Spindle Motor Power(kW): 7.5 Year: 2022
Voltage: 220/380V Dimension(L*W*H): 2625*1005*1466MM
Weight (KG): 1800 KG Warranty: 2 Years
Key Selling Points: Automatic Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Other
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge Marketing Type: New Product 2022
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 24months Core Components: Motor
Machine Type: Horizontal Metal Turning Lathe Machine Product Name: Chinese Lathe
Function: Metal Turning Product Type: Flat Bed Lathe
Keyword: Metal Turning Lathe Model: CK6136
Name: Horizontal Lathe Processing: Metal Working Lathe Machine
CNC Or Not: CNC Motor Power: 7.5KW

New type ck6136 mazak desktop machine cnc lathe machine made in China 0
New type ck6136 mazak desktop machine cnc lathe machine made in China 2
Product Application

1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.
2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.


Product main technical Specifications:
Specifications
unit
CK6136
CK6136B
CK6140
Max. swing over bed
mm
Φ360
Φ360
Φ400
Max. swing over cross slide
mm
Φ180
Φ180
Φ240
X/Z axis travel
mm
280/550
280/750
280/750
Spindle nose

A2-6
A2-6
A2-6/(A2-8(Optional)
Spindle bore
mm
Φ48
Φ48
Φ48/Φ82
Bar capacity
mm
Φ41
Φ41
Φ41/Φ65
Max. spindle speed
rpm
150-2000
150-2000
150-2000/150-1800
Chuck size
mm
200
200
200/250
Spindle motor
kW
5.5
5.5
5.5/7.5
X/Z axis repeatability
mm
±0.005
±0.005
±0.005
X/Z axis feed motor torque
N.m
X:4 Z:6
X:4 Z:6
X:4 Z:6
X/Z Rapid traverse
m/min
X:8 Z:10
X:8 Z:10
X:8 Z:10
Tailstock quill dia.
mm
Φ60
Φ60
Φ60
Quill traverse
mm
100
100
100
Quill taper
#
MT4
MT4
MT4
Tool post type

Four position electric turret
Four position electric turret
Four position electric turret
Cutting tool shape size
mm
20×20
20×20
20×20
Guide form

Double mountain
Double mountain
Double mountain
Total power capacity
KVA
9
9
11
Machine dimension (L×W×H)
mm
2000×1200×1620
2250×1160×1620
2200×1160×1620
Net. weight (about)
kg
1560
1700
1800
Standard Accessories: Optional Accessories:

1.complete coolant system for ready use 1. automatic feeding device for long bar work piece
2.complete lubrication system for ready use 2. chip conveyor
3. LED work light 3. hydraulic chuck, hydraulic station, rotaty cylinder
4. 10" three jaw manual chuck ( solid type or hollowed type)
5. 4 tool electric tool carrier 4. steady rest
6. manual tailstock 5. fellow rest
7. tool box and tools 6. 6 tool electrical tool carrier
8.GSK control 7.siemens/fanuc control
Detailed Images
New type ck6136 mazak desktop machine cnc lathe machine made in China 4
New type ck6136 mazak desktop machine cnc lathe machine made in China 6
Details Display
New type ck6136 mazak desktop machine cnc lathe machine made in China 8
New type ck6136 mazak desktop machine cnc lathe machine made in China 10
Recommend Products

Company Introduction
New type ck6136 mazak desktop machine cnc lathe machine made in China 12
New type ck6136 mazak desktop machine cnc lathe machine made in China 14
New type ck6136 mazak desktop machine cnc lathe machine made in China 16
New type ck6136 mazak desktop machine cnc lathe machine made in China 18
Packing&Shipping
New type ck6136 mazak desktop machine cnc lathe machine made in China 20
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
