| Place of Origin: | Shandong, China |
| Brand Name: | Classiccnc |

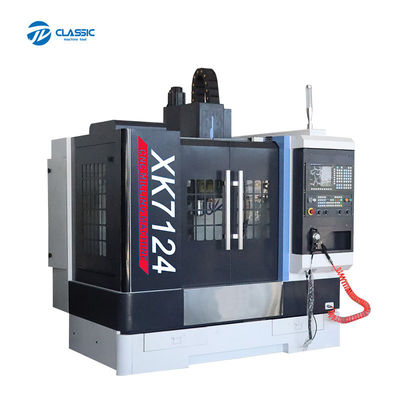

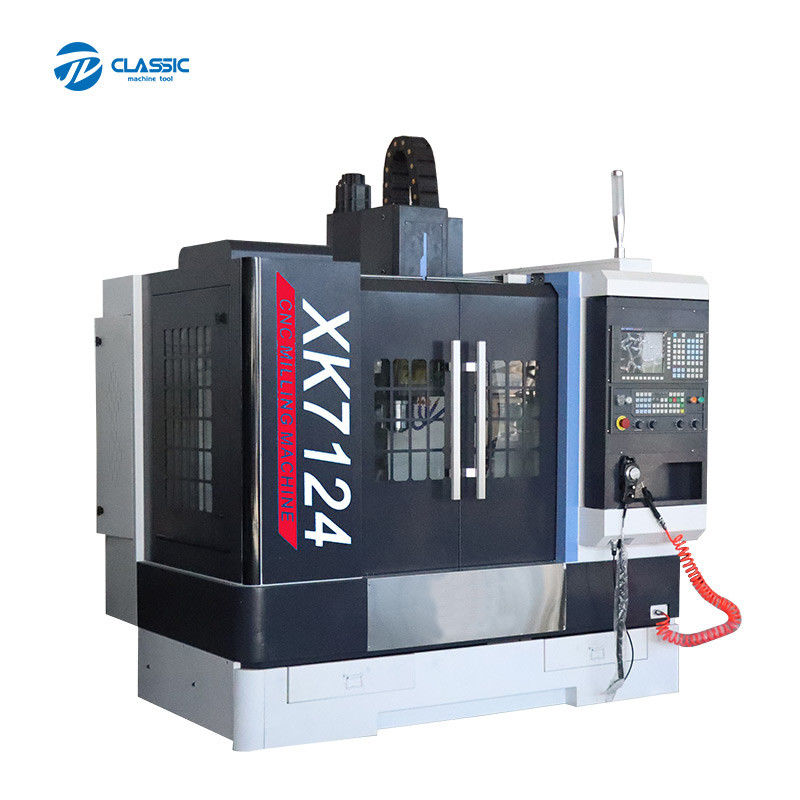

| Model Number: | XK7124/XH7124 |
| Price: | $10,999.00/Sets 1-2 Sets |
|---|---|
| Packaging Details: | The machine will be packed by the plywood case<br>Mini cnc milling machine frame XK7124/XH7124 small cnc vertical milling machine center |
| Supply Ability: | 50 Set/Sets per Month |
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 60 - 8000 |
|---|---|---|---|
| Number Of Axes: | 4 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | BT40/BT30 |
| Table Travel (X) (mm): | 500 | Table Travel (Y) (mm): | 300 |
| Table Travel (Z) (mm): | 450 | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.005 | Condition: | New |
| Table Travel (mm): | 1000*240 | Year: | 2022 |
| Voltage: | 380/240V | Dimension(L*W*H): | 2270*1800*2150mm |
| CNC Control System: | GSK/fanuc/KND/Siemens | Key Selling Points: | Automatic |
| Weight (KG): | 2000 | Spindle Motor Power(kW): | 5.5 |
| Warranty: | 2 Years | Max. Table Load(kg): | 200 Kg |
| Applicable Industries: | Garment Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Other | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge |
| Marketing Type: | New Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 24 Months |
| Core Components: | Bearing, Motor, Gear, Engine | Product Name: | Milling Machine Center Frame |
| Machine Type: | Machining Center | Application: | Metal Processing |
| Function: | Vertical Milling Machining | Name: | 3 Axis Milling Machine |
| Keyword: | Cnc 3 Axis Milling Machine | Precision: | High Precision |
| Product Type: | Cnc 3/4/5 Axis Machine | Usage: | Processing Machine |
| CNC Or Not: | CNC Machining Center | Port: | Qingdao Or Shanghai Port |
|
Table size
|
1000X240mm
|
|
Max. table load
|
300kg
|
|
T slot qty-width*distance
|
3-14x75
|
|
spindle speed
|
8000r p m
|
|
spindle nose to table surface
|
90-470mm
|
|
Spindle center to Column surface
|
360mm
|
|
Spindle taper
|
BT40
|
|
Main motor power
|
2.2/3.7kw (servo)
|
|
X axis travel
|
450mm
|
|
Y axis travel
|
380mm
|
|
Z axis travel
|
400mm
|
|
X/Y/Z axis rapid feed
|
15/15/15m/min
|
|
Positioning accuracy
|
±0.01mm
|
|
Repeatabeility accuracy
|
±0.005mm
|
|
Net Weight
|
2400 kg
|
|
Overall Dimension
|
1900X1620X2000
|
