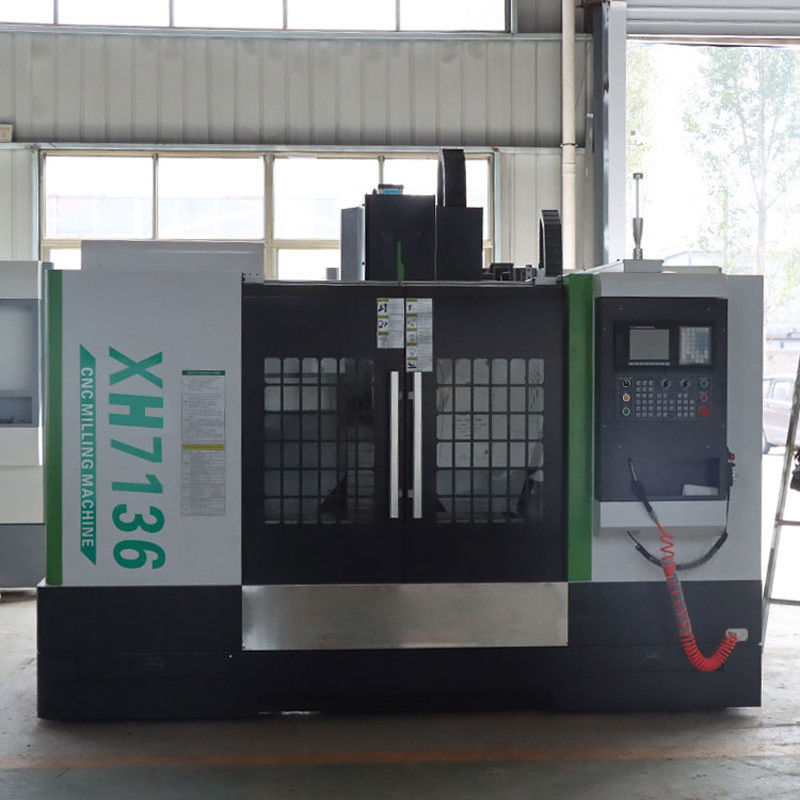

Vertical VMC machining center XK7136 XH7136 metal CNC milling machine price

Name: Vertical VMC machining center XK7136 XH7136 metal CNC milling machine price
Brand: Classic
SKU: xk7136
Price: 12 USD
Availability: InStock
Rating: 4.7 (170 reviews)

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Classic
Model Number:	xk7136

Payment & Shipping Terms:

Price:	$12,000.00/Sets 1-4 Sets
Packaging Details:	The machine will be packed by the playwood case<br>Vertical VMC machining center XK7136 XH7136 metal CNC milling machine price
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Type:	VERTICAL	Range Of Spindle Speed(r.p.m):	60 - 8000
Number Of Axes:	4	No. Of Spindles:	Single
Machining Capacity:	Light Duty	Spindle Taper:	BT30/BT40
Table Travel (X) (mm):	900 Mm	Table Travel (Y) (mm):	360 Mm
Table Travel (Z) (mm):	500 Mm	Positioning Accuracy (mm):	0.01
Repeatability (X/Y/Z) (mm):	0.005	Condition:	New
Table Travel (mm):	1250*360	Year:	2021
Voltage:	380V	Dimension(LWH):	300024002500
CNC Control System:	KND	Key Selling Points:	Competitive Price
Weight (KG):	2500	Spindle Motor Power(kW):	5.5
Warranty:	2 Year	Max. Table Load(kg):	300 Kg
Applicable Industries:	Manufacturing Plant	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	2 Years
Core Components:	Bearing	CNC Or Not:	CNC
T Slot Qty-width*distance:	3-14x110	Spindle Speed:	60-8000 R P M
Spindle Nose To Table Surface:	125-520mm	Spindle Center To Column Surface:	360
Main Motor Power:	3.7kw (servo)	Machine Type:	Cnc Vertical Milling Machine
Application:	Metal Machining	Color:	Custom-made
Product Name:	Vertical Machininig Center	Port:	Qingdao Or Shanghai Port

Products Description

Product Application
Suitable for drilling ,hole-expansion ,reaming ,bevel edge ,and tapping, for surface milling, step plane ,slope ,and milling groove , for cuttingand milling curve ,curve surface and cam.Have the function of stepless speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

Product main technical parameters:

Specifications	Units	XK7136	XH7136
Table size	mm	1250x360	1250x360
X axis travel	mm	900	900
Y axis travel	mm	360	350
Z axis travel	mm	500	500
Max. worktable load	kg	460	300
T slot(number-width-pitch)			3-14x80
Max. spindle speed	rpm	8000	8000
Spindle taper	mm	BT40	BT40
Main motor power	kw	5.5	5.5
X/Y/Z rapid traverse speed	m/min	6/6/4	10/10/8
Cutting feed speed	mm/min	1-10000	1-2000
Guide rail type		Hard rail	Hard rail
Distance from spindle axis to column surface	mm	460	460
Distance between spindle nose and worktable surface	mm	100-600	100-600
Positioning accuracy	mm	±0.04	±0.04
Repeat positioning accuracy	mm	±0.02	±0.02
Tool magazine		-	16 Armless/(Optional: Arm 16 )
Max. tool diameter	mm	-
Max.tool weight	kg	-
Machine weight	kg	2800	2600
Overall dimension	mm	2380x1900x2350	3000x2400x2500

Standard configuration:
1.The CNC system: KND,GSK,Fanuc and etc.
2.The knife: The famous Taiwan tools changer
3.The weight: Wuxi Xieqing nitrogen balance
4.The high quality castings: Resin sand casting
5.The spindle: Taiwan famous high speed spindle
6.The Internal protection: Total or half protection
Select the configuration:
1.M70B/M70A Mitsubishi FANUC 0i mate MD
2.The CNC dividing head
3.The taiwan famous brand manipulator knife storehouse
4.NC rotary table
5.The chip cleaner
6.The fourth axis
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for
long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of
machine on heavy cutting
3.The pretension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from
roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in
aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing,

oil, electronics and other industries.

Product description

Recommend Products

Company Introduction

Packing&Shipping

FAQ

1. What is the payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will

take pictures to you.after we got your balance payment. we will send the machine to you. 2. What is your trade terms? A : FOB, CFR and CIF all acceptable. 3.How can I choose the most suitable machines ? A: Please let us know your machining demand or machine size ,we can choose the best model for you ,

or you can choose the exact model by yourself. You can also send us the products drawing ,we will

choose the most suitable machines for you .

4. What is your trade terms? A : FOB, CFR,CIF or others terms are all acceptable. 5. What is your minimum order quantity and warranty? A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine. 6. What is the package of the machines? A: The machines standard packed by iron pallets with plastic films
