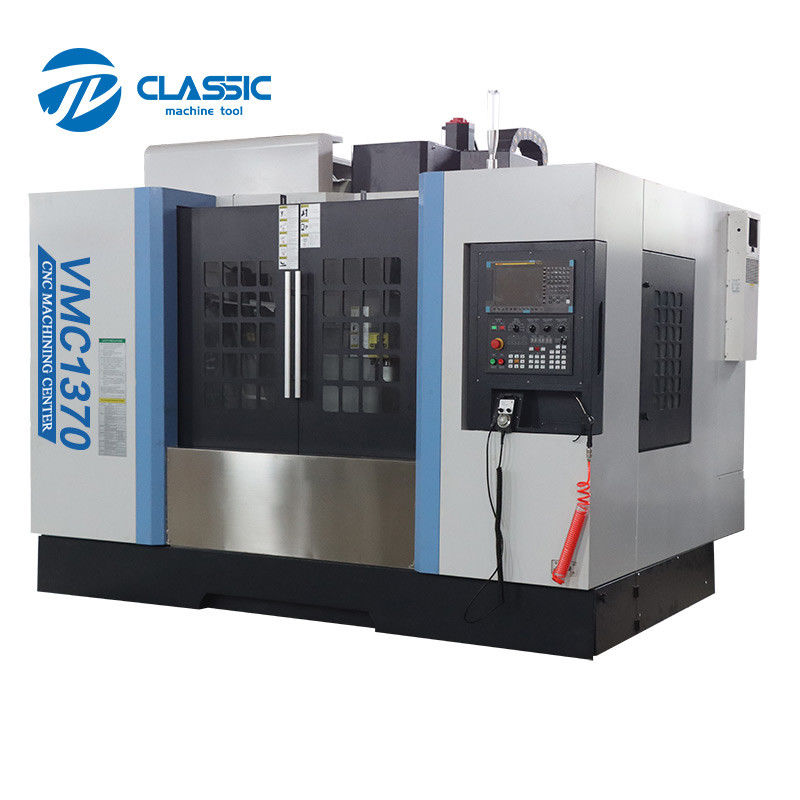

Factory direct milling machine VMC1370 machining center 3/4/5-axis CNC machine tool High-quality CNC machining center

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Classic cnc

Payment & Shipping Terms:

Price:	$26,000.00/Sets 1-2 Sets
Packaging Details:	The machine will be packed by the plywood case<br>Factory direct milling machine VMC1370 machining center 3/4/5-axis CNC machine tool High-quality CNC machining center
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Spindle Taper:	BT50
No. Of Spindles:	Single	Type:	VERTICAL
Dimension(LWH):	380030002650mm	Weight (T):	10 T
Table Size (mm):	1500x700	CNC Control System:	GSK, FANUC, MITSUBISHI, KND, Siemens
Number Of Axes:	3, 4, 5	Table Travel (X) (mm):	1300
Table Travel (Y) (mm):	700	Table Travel (Z) (mm):	700
Positioning Accuracy (mm):	0.001	Repeatability (X/Y/Z) (mm):	0.004
Range Of Spindle Speed(r.p.m):	10 - 10000 R.p.m	Spindle Motor Power(kW):	15
Max. Table Load(kg):	1500 Kg	Feed Speed(mm/min):	10 - 10000 Mm/min
Rapid Feed Speed(m/min):	36/36/20	Min. Time Of Tool Change(s):	2
Tool Magazine Capacity:	24	Key Selling Points:	Automatic
Warranty:	2 Years	Voltage:	380/240V
Applicable Industries:	Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Other	Showroom Location:	Egypt, Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri
Marketing Type:	New Product 2021	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	2 Years
Core Components:	Bearing	T Slot:	5-18*120mm
X/Y/Z Axis Rapid Feed:	36/36/20m/min	Tool Length:	250/350mm
Spindle Nose To Table Surface:	180-780mm	Name:	Vertical Machine Center CNC Machine
Machine Type:	CNC Vertical Machining Center	Product Name:	3-axis Vertical Cnc Machining Center
Application:	General Machinery Processing	Product Type:	Cnc 3 Axis Machine
Processing:	Metal Cutting Cnc Milling Machine	Port:	Qingdao Or Shanghai Port

Product Application

This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.

Specifications	Units	VMC1370
Table size	mm	1400x700
X axis travel	mm	1300
Y axis travel	mm	700
Z axis travel	mm	700
Max. worktable load	kg	1400
T slot(number-width-pitch)		5-22x140
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT50/BT40
Main motor power	kw	15/18.5
X/Y/Z rapid traverse speed	m/min	24/24/18
Cutting feed speed	mm/min	1-6000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	780
Distance between spindle nose and worktable surface	mm	160-860
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.0075
Tool magazine		Arm 24
Max. tool diameter	mm	φ112 Adjacent)/ φ200(Apart)
Max.tool weight	kg	18
Machine weight	kg	10000
Overall dimension	mm	3870x3165x2920

Standard configuration: Optional Configurations:

1. GSK25i cnc system. 1. KND Siemens Fanuc Mitusbishi GUNT.
2. Taiwan BT40-150-8000 spindle. 2. Arm type ATC.
3. Taiwan 24T Arm Type Tool Changer. 3. Automatic chip conveyor.
4. Taiwan Hiwin Ball Screw and Linear Guideway. 4. 4th axis and 5th axis.
5. Auto Lubrication System. 5. Spindle oil coolant, Center to water.
6. Cooling System. 6. Renishaw probe for workpiece and tool.
7. Work Lamp.
8. Full Enclosure Machine Guard.

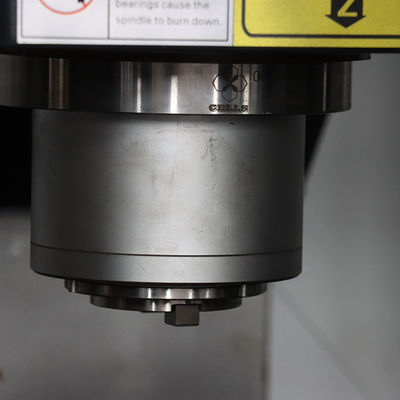

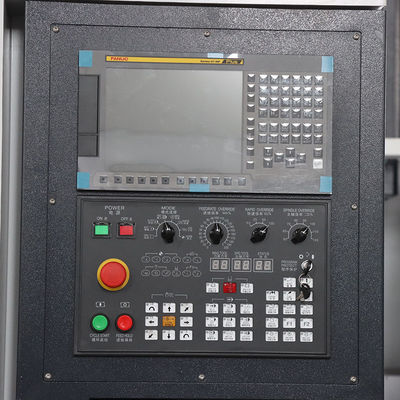

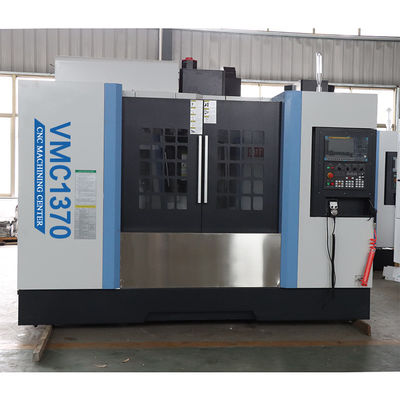

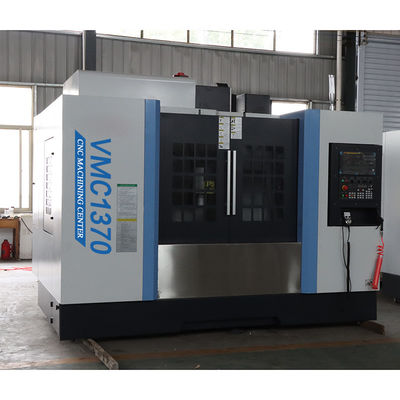

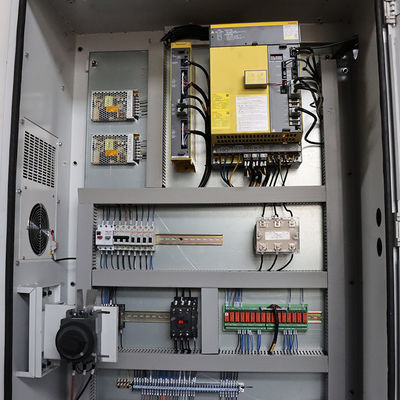

Detailed Images

Details Display

Recommend Products

Company Introduction

Packing&Shipping

FAQ

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.How can I choose the most suitable machines ?

A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard packed by iron pallets with plastic films
