High precision 855 Vertical Machining Center Cnc Milling Machine For Sale 5axis machining center with great price

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Classiccnc

Payment & Shipping Terms:

Price:	$30,000.00/Sets 1-2 Sets
Packaging Details:	The machine will be packed by the plywood case<br>High precision 855 Vertical Machining Center Cnc Milling Machine For Sale 5axis machining center with great price
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Spindle Taper:	BT40
No. Of Spindles:	Single	Type:	VERTICAL
Dimension(LWH):	2750x2300x2300MM	Weight (T):	5.2 T
Table Size (mm):	1000x500	CNC Control System:	GSK, FANUC, MITSUBISHI, KND, Siemens
Number Of Axes:	3, 4, 5	Table Travel (X) (mm):	800
Table Travel (Y) (mm):	500	Table Travel (Z) (mm):	500
Positioning Accuracy (mm):	0.001	Repeatability (X/Y/Z) (mm):	0.004
Range Of Spindle Speed(r.p.m):	1 - 10000 R.p.m	Spindle Motor Power(kW):	7.5
Max. Table Load(kg):	500 Kg	Feed Speed(mm/min):	1 - 10000 Mm/min
Rapid Feed Speed(m/min):	20/20/15	Min. Time Of Tool Change(s):	2
Tool Magazine Capacity:	16, 24	Key Selling Points:	Automatic
Warranty:	2 Years	Voltage:	380/240V
Applicable Industries:	Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Other	Showroom Location:	Egypt, Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri
Marketing Type:	New Product 2021	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	2 Years
Core Components:	Bearing	X/Y/Z Axis Servo Motor Torque:	10/10/15N.M
Automatic Tools Changer:	16 Armless Type(optional:24 Arm	Tool Length:	250/350mm
Tool Diameter:	100(Adjacent)/150(Apart)	Cutting Feed Speed:	10m/min
Machine Type:	CNC Vertical Machining Center	Product Name:	3-axis Vertical Cnc Machining Center
Application:	Metal Machining	Product Type:	Cnc 3 Axis Machine
Controlling Mode:	Fanuc Mitsubishi Siemens Gsk System	Port:	Qingdao Or Shanghai Port

Features:

High quality resin sand Taiwan linear railway
Taiwan spindle Japanese NSK bearing germany R+W coupling
Taiwan ball screw and locking nut Automatic lubrication system
Taiwan pressure cylinder Chip conveyor at optional

Product Application

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

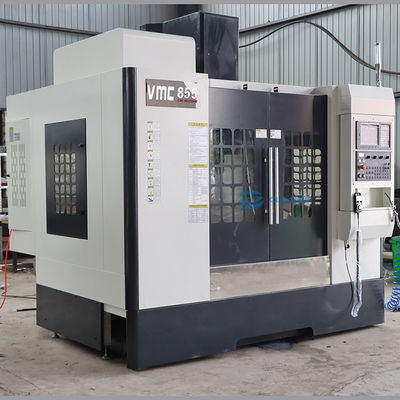

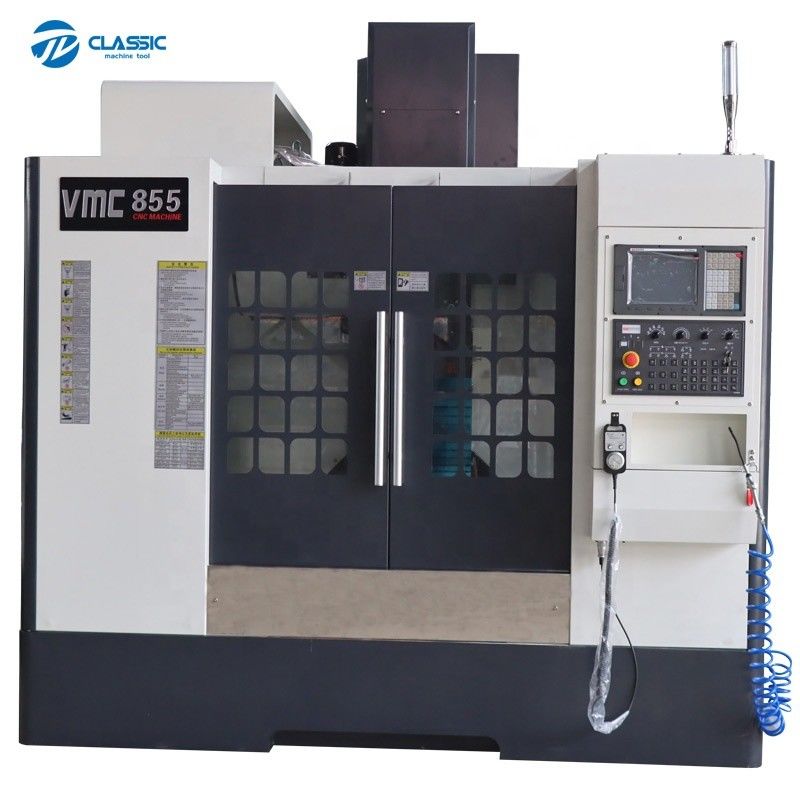

specifications	unit	VMC855
Table size	mm	1000x550
X axis travel	mm	850
Y axis travel	mm	550
Z axis travel	mm	550
Distance between spindle center and column surface	mm	632
Distance between spindle nose and table surface	mm	110-660
T slot		3-18*100
Spindle taper	mm	BT40
Max. spindle speed	r/min	8000(10000 optional)
Main motor power	kw	7.5
X/Y/Z axis servo motor torque	N.M	15/15/18
X/Y/Z motor connection		direct
X/Y/Z guide rail form		3 axis linear guide rail
Max.table load	kg	600
Automatic tools changer		16 Armless type(optional:24 arm type)
Max.tool weight	kg	8
Max. tool length	mm	250/350
Max. tool diameter	mm	100(Adjacent)/150(Apart)
X/Y/Z axis rapid traverse	M/min	24/24/20
Cutting feed speed	M/min	10
Position accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Machine dimension	mm	2900x2400x2750
Machine weight	kg	6500

Standard Accessories:

Serial number	Name	Specifications or markings	Quantity
1	Spring chuck handle	MAS BT40-ER32-100L	1
2	Spring chuck		1
3	Rivet	P40T-1-MAS403	1
4	Hook wrench		1
5	Allen wrenches		1
6	Adjustable horn and bolts		4

The functional parts table:

Serial number	Name	model	Origin	Quantity

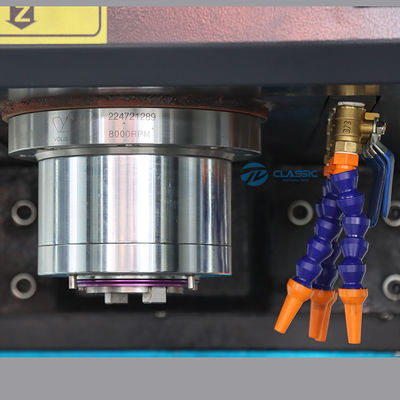

1	Spindle unit	BT40	Taiwan posn	1
2	Pressed cylinder		Taiwan Haocheng	1

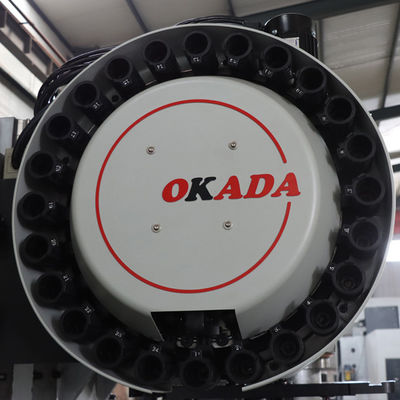

3	ATC	16	Taiwan okada	1
4	X Ball Screws		Taiwan Hiwin	1
5	y Ball Screws		Taiwan Hiwin	1
6	Z Ball Screws		Taiwan Hiwin	1
7	Screw bearings		china	3
8	guide	X, Y,Z all is ball line	Taiwan Hiwin	3

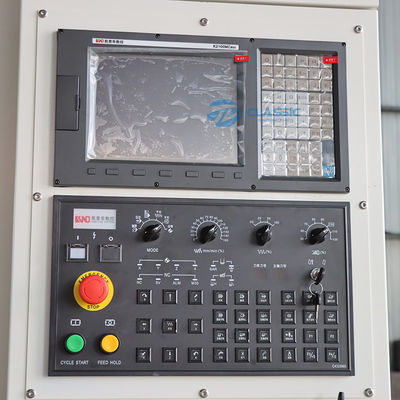

9	control system		Knd/gsk	1

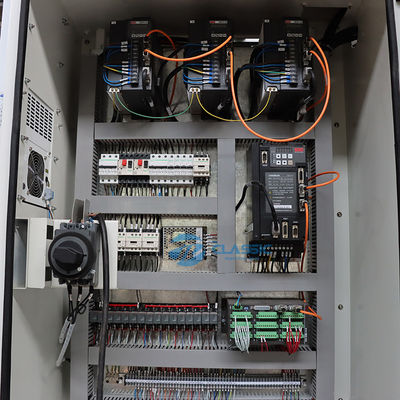

10	Three axes Motor and drive		MAXSINE	1
11	Cooling the pump	PMY-25-5	china	1
12	Lubrication system	Single wire damping	Taiwan Hurun	1
13	Pneumatic system		Taiwan Airtac	1

Detailed Images

Details Display

Recommend Products

Company Introduction

Packing&Shipping

FAQ

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.How can I choose the most suitable machines ?

A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard packed by iron pallets with plastic films
