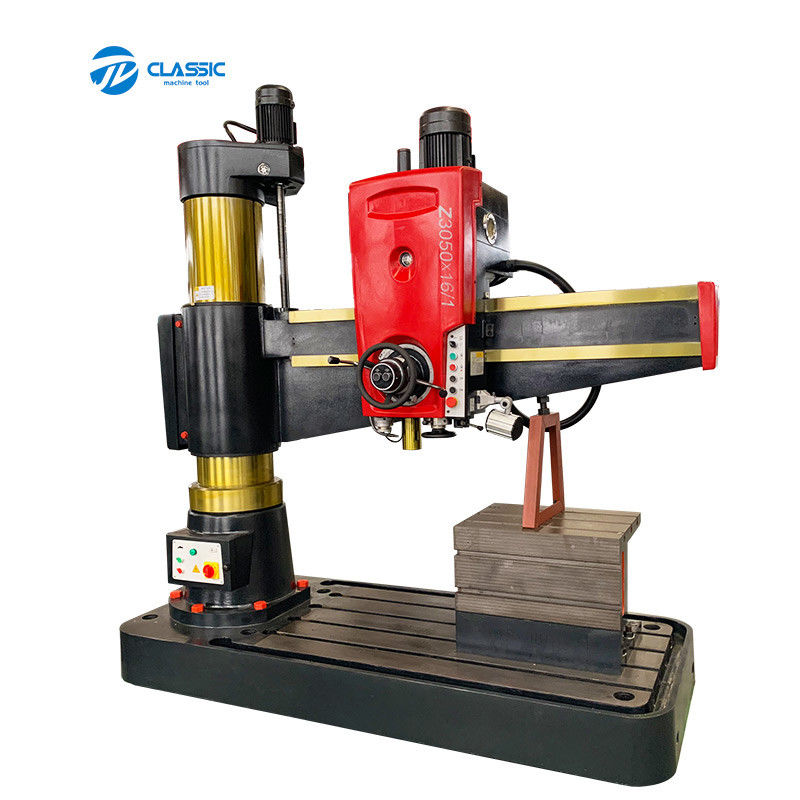

Heavy duty manual vertical radial arm drill press Z3050x16 hydraulic radial drilling machine with radial arm

Name: Heavy duty manual vertical radial arm drill press Z3050x16 hydraulic radial drilling machine with radial arm
Brand: Classic
SKU: Z3050
Price: 8 USD
Availability: InStock
Rating: 4.5 (170 reviews)

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Classic
Model Number:	Z3050

Payment & Shipping Terms:

Price:	$8,000.00/Sets 1-2 Sets
Packaging Details:	The machine will be packed by the plywood case<br>Heavy duty manual vertical radial arm drill press Z3050x16 hydraulic radial drilling machine with radial arm
Supply Ability:	50 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Radial Drilling Machine
Max. Drilling Dia. (mm):	50	Range Of Spindle Speed(r.p.m):	350 - 1600 R.p.m
CNC Or Not:	Normal	Drilling Speed:	25-2000rpm
Voltage:	Customer's Requirement	Dimension(LWH):	270011202550mm
Power (kW):	5.5	Weight (KG):	3500 KG
Warranty:	2 Years	Key Selling Points:	Multifunctional
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge	Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Retail
Marketing Type:	New Product 2022	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	13 Months
Core Components:	Bearing	Distance From Spindle Axis To Column:	350-1600mm
Column Diameter:	350mm	Spindle Taper:	MT5
Color:	Customers' Requirement	Spindle Travel:	315mm
Worktable Dimension:	630500500mm	Machine Type:	Drilling Equipment
Function:	Drilling Tapping Milling	Usage:	General
Product Name:	Drill Press Drilling Machine	Port:	Qingdao Or Shanghai Port

Product Description

The main performance characteristics:
Radial Drilling Machines are widely used in single and small batch production to process the holes of larger and heavier workpieces. Radial Drilling Machines are available in a wide range of screw holes, threaded bottom holes and oil holes for drilling large workpieces. The radial drilling machine is used for processing small and medium-sized holes on bulky workpieces or
porous workpieces. It is mainly composed of base, column, rocker arm, headstock, spindle workpiece table, etc.

Product main technical Specifications

Model	Z3050X16/1
Max.Drilling capacity	50mm
Distance from spindle axis to column (min/max)	350mm-1600mm

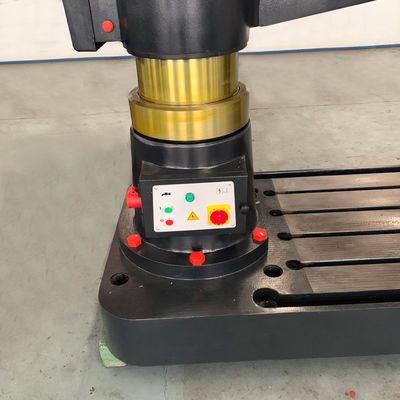

Column Diameter	350mm
Spindle taper	MT5
Spindle travel	315mm
Spindle speeds (range)	25-2000
Spindle speeds (number)	16
Spindle feeds (range)	0.04-3.2r/min
Spindle feeds (number)	16
Distance between spindle & working surface of base (min/max)	320mm-1220mm

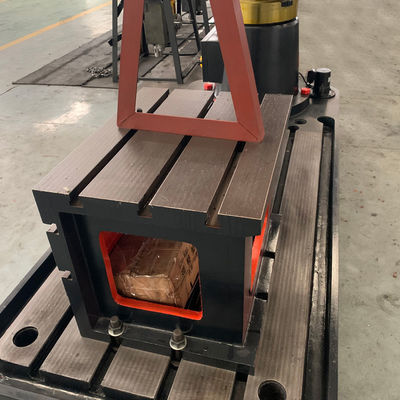

Worktable dimension	630mm×500mm×500mm
Base dimension	2400mm×1000mm×200mm
Overall dimensions	2500×1060×2650
Spindle motor	5.5HP
G.W / N.W	3600kgs / 3500kgs
Packing dimensions	270cm×112cm×255cm

Standard Accessories
1 . Plain Box Table
2 . Taper sleeve
3 . Tool releasing Wrench
4 . Drift
5 . Eyelet bolts
Optional Accessories
1 . Machine vice
2 . Tapping chuck
3 . Grease gun

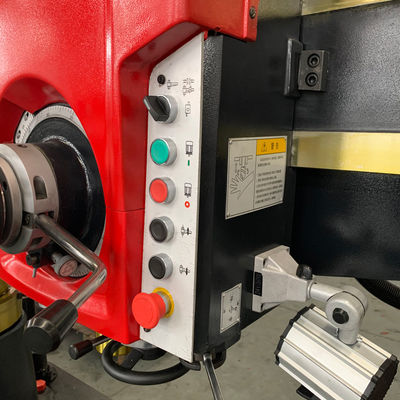

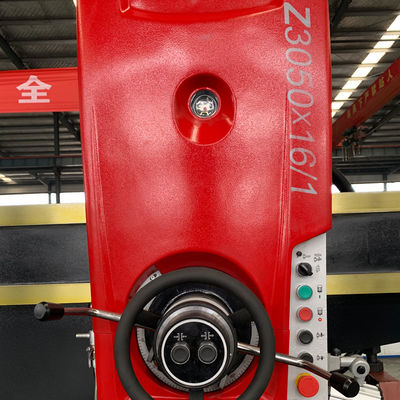

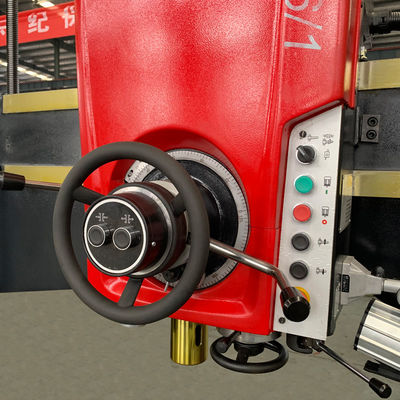

Detailed Images
