Small milling machine ZX50C milling drilling machine direct sales

Small milling machine ZX50C milling drilling machine direct sales

  • Small milling machine ZX50C milling drilling machine direct sales
  • Small milling machine ZX50C milling drilling machine direct sales
  • Small milling machine ZX50C milling drilling machine direct sales
  • Small milling machine ZX50C milling drilling machine direct sales
  • Small milling machine ZX50C milling drilling machine direct sales
  • Small milling machine ZX50C milling drilling machine direct sales
Small milling machine ZX50C milling drilling machine direct sales
Product Details:
Place of Origin: Shandong, China
Brand Name: Classic
Certification: CE ISO
Model Number: ZX50C
Payment & Shipping Terms:
Price: $2,199.00/Sets 1-2 Sets
Packaging Details: The machine will be packed by the plywood case<br>Small milling machine ZX50C milling drilling machine direct sales
Supply Ability: 100 Set/Sets per Year
Contact Now
Detailed Product Description
Table Travel (X) (mm): 400 Number Of Axes: 3
Machining Capacity: Medium Duty Table Travel (Y) (mm): 230
Table Travel (Z) (mm): 380 Spindle Taper: MT4/R8
Range Of Spindle Speed(r.p.m): 115 - 1750 R.p.m Condition: New
Table Travel (mm): 800x240 Year: 2022
Type: VERTICAL Spindle Motor Power(kW): 2.2
Voltage: 220V/380V/440V Dimension(L*W*H): 1100X970X1650mm
Weight (KG): 550 Warranty: 2 Years
Key Selling Points: Automatic Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Retail
Showroom Location: Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United Marketing Type: New Product 2022
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 24 Months Core Components: Motor
After-sales Service Provided: Online Support Name: Milling Drilling Machine
Machine Type: Vertical Drilling Milling Keyword: Milling Machine Manual
Function: Drilling Milling Application: Metal Machining
Precision: High Precision Color: Customer Appoint
Usage: Metal Parts Machining Port: Qingdao Or Shanghai Port

Product Description

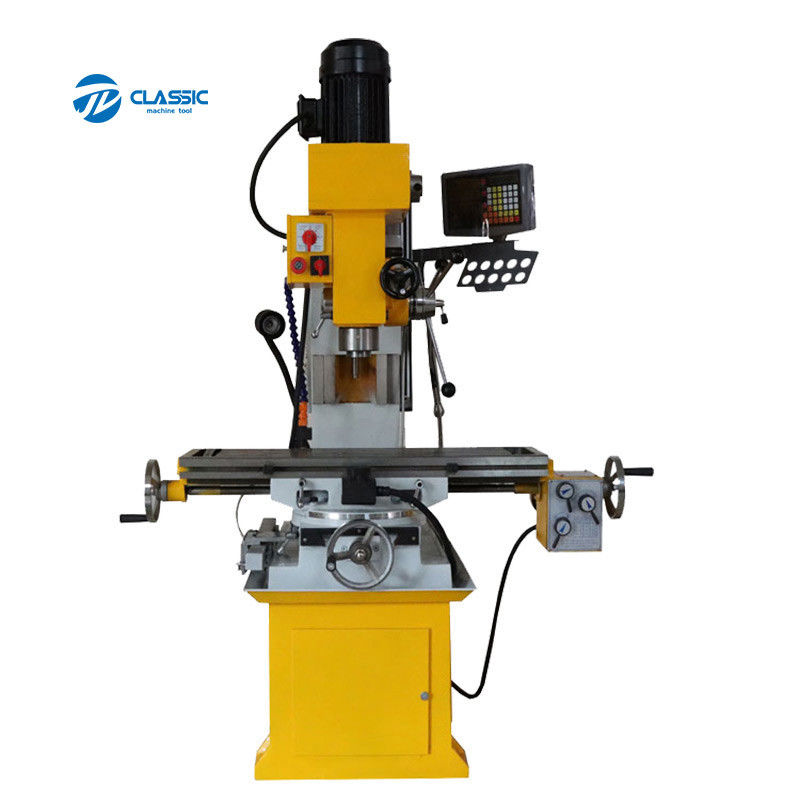

Small milling machine ZX50C milling drilling machine direct sales 0
Small milling machine ZX50C milling drilling machine direct sales 1
The main performance characteristics::

1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical parameters:
pecifications
ZX50C
Max.drilling dia.(mm)
50
Max.end milling width(mm)
100
Max.vertical milling dia.(mm)
25
Max.taopping dia.
M16
Spindle speed range (r.p.m)
230-1825
Spindle travel(mm)
120
Table size(mm)
800×240
Table travel(mm)
400×230
Overall dimensions(mm)
1100×970×1650
Motor(kw)
0.85/1.5
N.W/G.W(kg)
550/650
Details Images

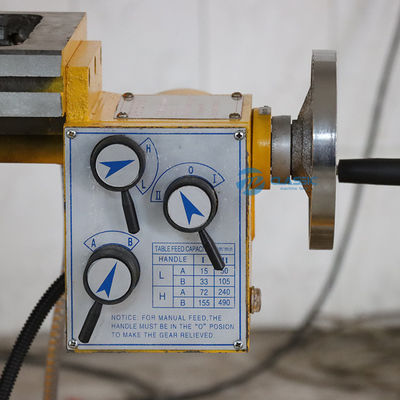

Small milling machine ZX50C milling drilling machine direct sales 2

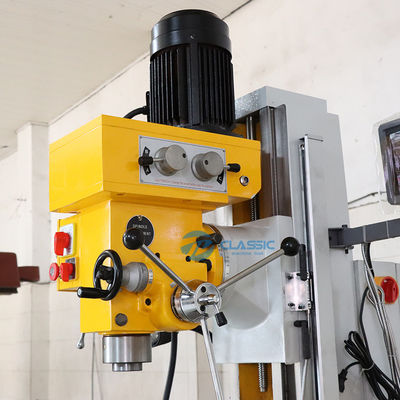

Small milling machine ZX50C milling drilling machine direct sales 3

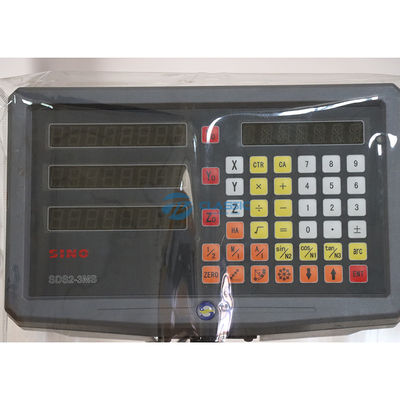

Small milling machine ZX50C milling drilling machine direct sales 4

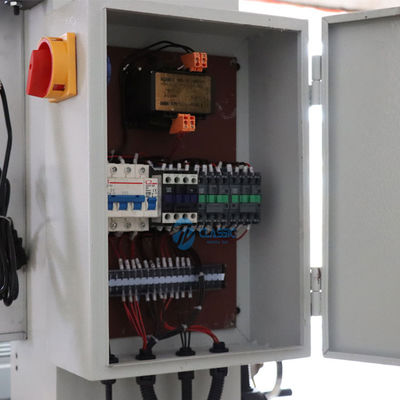

Small milling machine ZX50C milling drilling machine direct sales 5
Recommend Products
Company Introduction
Small milling machine ZX50C milling drilling machine direct sales 6
Small milling machine ZX50C milling drilling machine direct sales 7
Small milling machine ZX50C milling drilling machine direct sales 8
Small milling machine ZX50C milling drilling machine direct sales 9
Packing&Shipping
Small milling machine ZX50C milling drilling machine direct sales 10
FAQ
1. What is the payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will
take pictures to you.after we got your balance payment. we will send the machine to you.   2. What is your trade terms? A : FOB, CFR and CIF all acceptable.   3.How can I choose the most suitable machines ? A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will
choose the most suitable machines for you .
  4. What is your trade terms?  A : FOB, CFR,CIF or others terms are all acceptable.   5. What is your minimum order quantity and warranty? A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.   6. What is the package of the machines? A: The machines standard packed by iron pallets with plastic films
