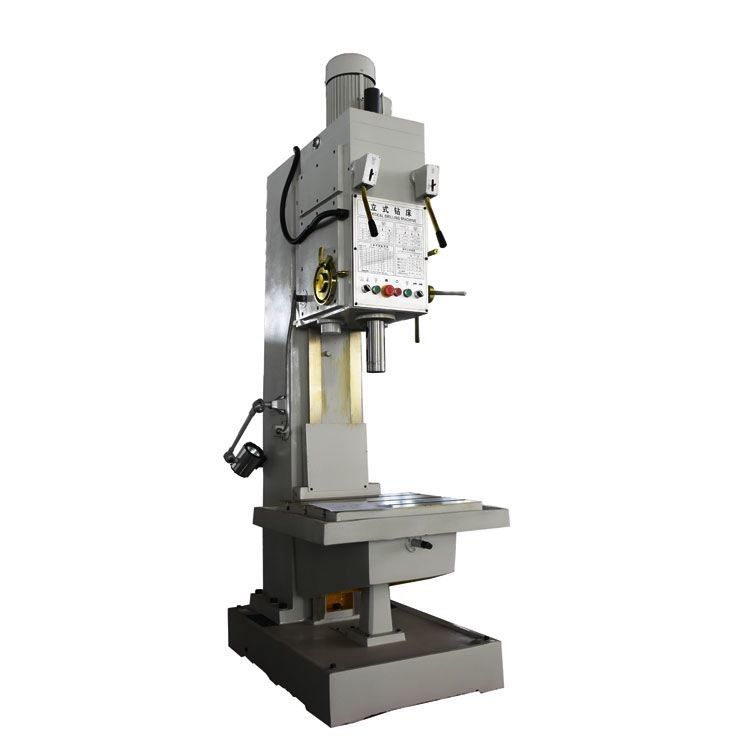

Widely used superior quality popular product cylindrical vertical drilling machine

Name: Widely used superior quality popular product cylindrical vertical drilling machine
Brand: classic
SKU: Z5140
Price: 3 USD
Availability: InStock
Rating: 5 (128 reviews)

Product Details:

Place of Origin:	Shandong, China
Brand Name:	classic
Model Number:	Z5140

Payment & Shipping Terms:

Price:	$3,500.00/Sets 1-2 Sets
Packaging Details:	The machine will be packed by the plywood case<br>Widely used superior quality popular product cylindrical vertical drilling machine
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Vertical Drilling Machine
Max. Drilling Dia. (mm):	40	Range Of Spindle Speed(r.p.m):	31.5 - 1400 R.p.m
CNC Or Not:	Normal	Drilling Speed:	31.5-1400r/min 12 Steps
Voltage:	380V	Dimension(LWH):	10909042465mm
Power (kW):	3	Weight (KG):	1300 KG
Warranty:	1 Year	Key Selling Points:	Competitive Price
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge	Applicable Industries:	Manufacturing Plant
Marketing Type:	New Product 2022	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	2 Years
Core Components:	Gear	Spindle Taper:	MT5
Spindle Stroke:	250mm	Headstock Travel (manual):	200mm
Feed Range:	0.056-1.80mm/r 9 Steps	Table Size:	560*480mm
Table Vertical Travel:	300mm	Distance Spindle Nose To Table:	750mm
Color:	Optional	Machine Type:	Drilling Equipment
Product Name:	Cnc Drilling Machine	Port:	Qingdao Or Shanghai Port

Products Description

Product Application
1.Max. drilling dia 40mm. Applicable to the work of the drilling expansion, technological requirements, such as tapping cutter.
2.Rigid tool strong, stable and high accuracy.
3.Resin sand bed casting process.
4.Hand wheel attached to Z5140B which makes the work table flexible, with coordinate table.But Z5140A can’t, the worktable just can move up and down.
5.Applicable to the work of the drilling expansion, technological require ments, such as tapping cutter.
6.Rigid Tool strong, stable and high accuracy.
7.Bed resin sand casting process.

Specifications	Z5140	Z5150
Max drilling dia	40mm	50mm
Spindle taper	MT4	MT5
Spindle stroke	250mm	250mm
Headstock travel(manual)	200mm	200mm
Spindle speeds	31.5-1400r/min 12 steps	31.5-1400r/min 12 steps
Feed range	0.056-1.80mm/r 9 steps	0.056-1.80mm/r 9 steps
Table size	560x480mm	560x480mm
Table vertical travel	300mm	300mm
Max.distance spindle nose to table	750mm	750mm
Main motor power	3kw	3kw
Overall dimension	10909052465mm	10909052465mm
N/W	1300kg	1350kg
