China high performance drilling milling machine ZX7550CW vertical horizontal milling machine for sale

Name: China high performance drilling milling machine ZX7550CW vertical horizontal milling machine for sale
Brand: Classic
SKU: ZX7550CW
Price: 2 USD
Availability: InStock
Rating: 4.5 (148 reviews)

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Classic
Model Number:	ZX7550CW

Payment & Shipping Terms:

Price:	$2,980.00/Sets 1-2 Sets
Packaging Details:	The machine will be packed by the plywood case<br>China high performance drilling milling machine ZX7550CW vertical horizontal milling machine for sale
Supply Ability:	100 Set/Sets per Year

Contact Now

Detailed Product Description

Table Travel (X) (mm):	400	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	230
Table Travel (Z) (mm):	380	Spindle Taper:	R8/NT30
Range Of Spindle Speed(r.p.m):	115 - 1750 R.p.m	Condition:	New
Table Travel (mm):	400*230	Year:	2021
Type:	Universal	Spindle Motor Power(kW):	2.2
Voltage:	220V/380V/440V	Dimension(LWH):	130011402080mm
Weight (KG):	800	Warranty:	2 Years
Key Selling Points:	Multifunctional	Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Retail
Showroom Location:	Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United	Marketing Type:	New Product 2021
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	2 Years	Core Components:	Motor
After-sales Service Provided:	Online Support	Name:	Milling Drilling Machine
Machine Type:	Vertical Drilling Milling	Product Name:	Horizontal Universal Milling Machine
Keyword:	Milling Machine Manual	Function:	Drilling Milling
Application:	Metal Machining	Precision:	High Precision
Color:	Customer Appoint	Usage:	Metal Parts Machining
Port:	Qingdao Or Shanghai Port

Product Description

The drilling and Milling Machine advantage :

1.Three axis hardened treatment, high rigidity.
2.vertical horizontal multi-functional ,drilling ,milling, boring operation.
3.X axis mechanical feed,Y.Z axis can be added the device
4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance,

easy to operate

The main feature:

1.Uses standardized assemblies from the VH milling machine universal use as

milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive

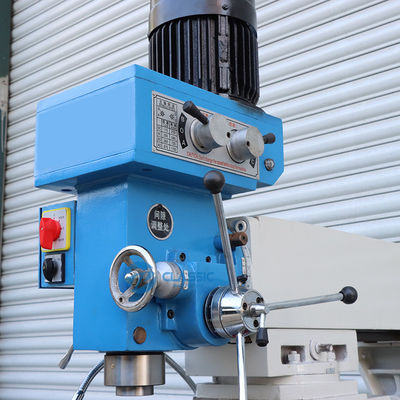

4.Head swivels into the horizontal level on both sided via crank and toothed gear,

easy activation of manual micro-feed for the spindle quill.

Product main technical parameters:

Model	ZX7550CW
Max.drilling dia (mm)	50
Max.horizontal milling dia (mm)	100
Max.vertical milling dia (mm)	25
Max.boring dia (mm)	120
Max.tapping dia	M16
Distance.spindle to table surface (mm)	90-490
Spindle speeds range (r.p.m)	(Vertical)115-1750 (Horizontal)60-1350
Spindle travel	120
Table size (mm)	800×240
Table travel (mm)	400×230
Overall dimensions (mm)	1280×1100×2080
Motor (Kw)	( Vertical)0.85/1.5 (horizontal)2.2
N.W/G.W (Kg)	850/1000

Details Images

Recommend Products

Company Introduction

Packing&Shipping

FAQ

1. What is the payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will

take pictures to you.after we got your balance payment. we will send the machine to you. 2. What is your trade terms? A : FOB, CFR and CIF all acceptable. 3.How can I choose the most suitable machines ? A: Please let us know your machining demand or machine size ,we can choose the best model for you ,

or you can choose the exact model by yourself. You can also send us the products drawing ,we will

choose the most suitable machines for you .

4. What is your trade terms? A : FOB, CFR,CIF or others terms are all acceptable. 5. What is your minimum order quantity and warranty? A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine. 6. What is the package of the machines? A: The machines standard packed by iron pallets with plastic films
